Guide to Using Puzzle Question Feature in Forms

Feature Summary

The puzzle question is used to collect a combined large image, such as in scenarios like "dual-code collection" and "front and back of ID card stitching." It supports features such as setting watermarks, naming methods, folder classification, image size limits, number of pieces to stitch, and stitching methods.

Feature Description

Feature Dimension	Description
Membership Restriction	No membership restriction
Version Restriction	No version restriction

Operation Steps

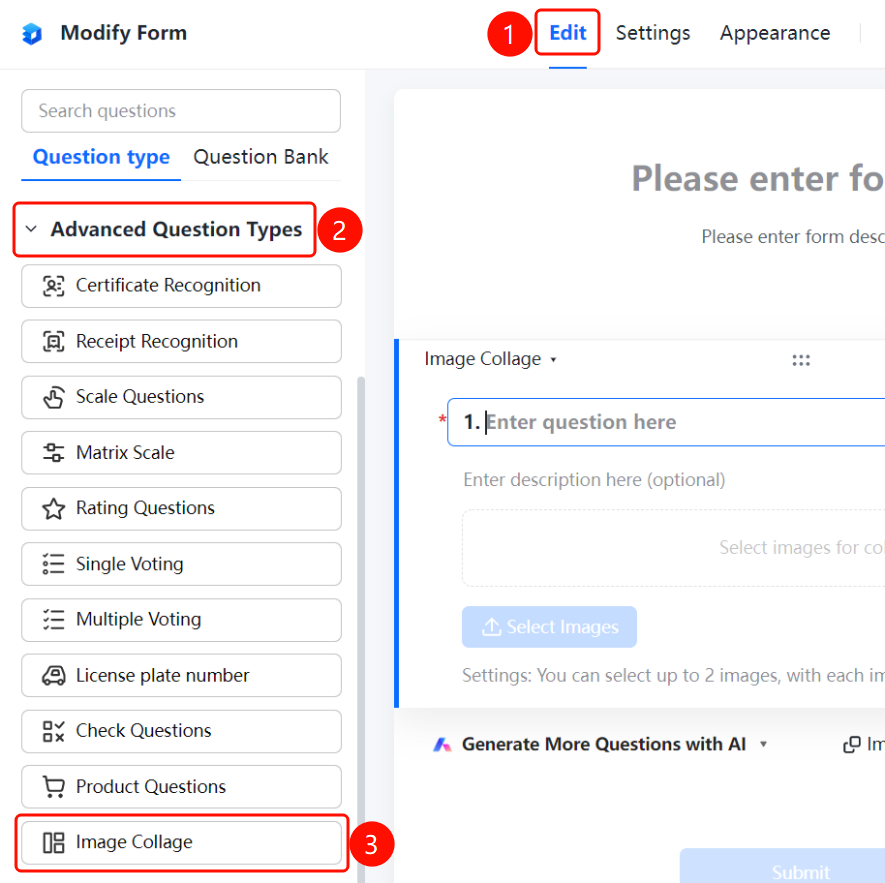

Add a Image Collage Question

Feature Entry
「Edit」 tab → 「Advanced Question Types」 → 「Image Collage」 button

1. Click the top 「Edit」 tab
2. Expand the 「Advanced Question Types」 area in the left panel
3. Click the 「Image Collage」 button to add the puzzle question to the form

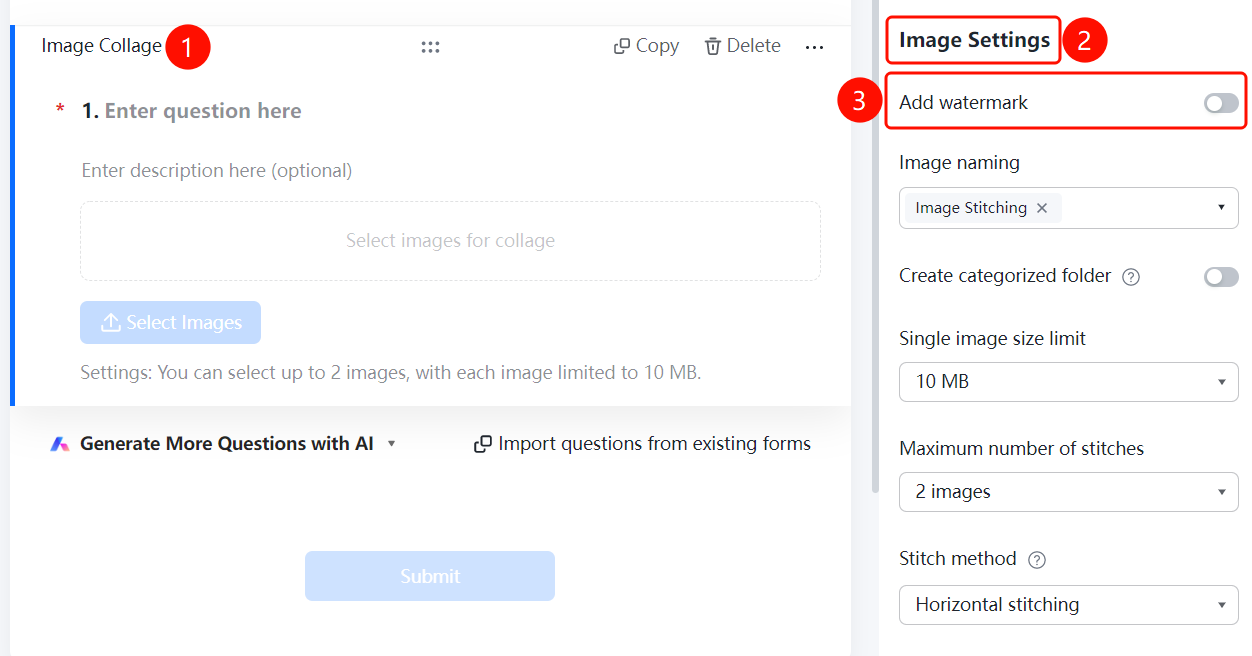

Set Add Watermark

Feature Entry
Puzzle Question → 「Image Settings」 → 「Add Watermark」 toggle

1. Click the added puzzle question
2. In the right 「Image Settings」 panel, turn on the 「Add Watermark」 toggle
3. After turning it on, the uploaded images will automatically have Add Watermark information applied

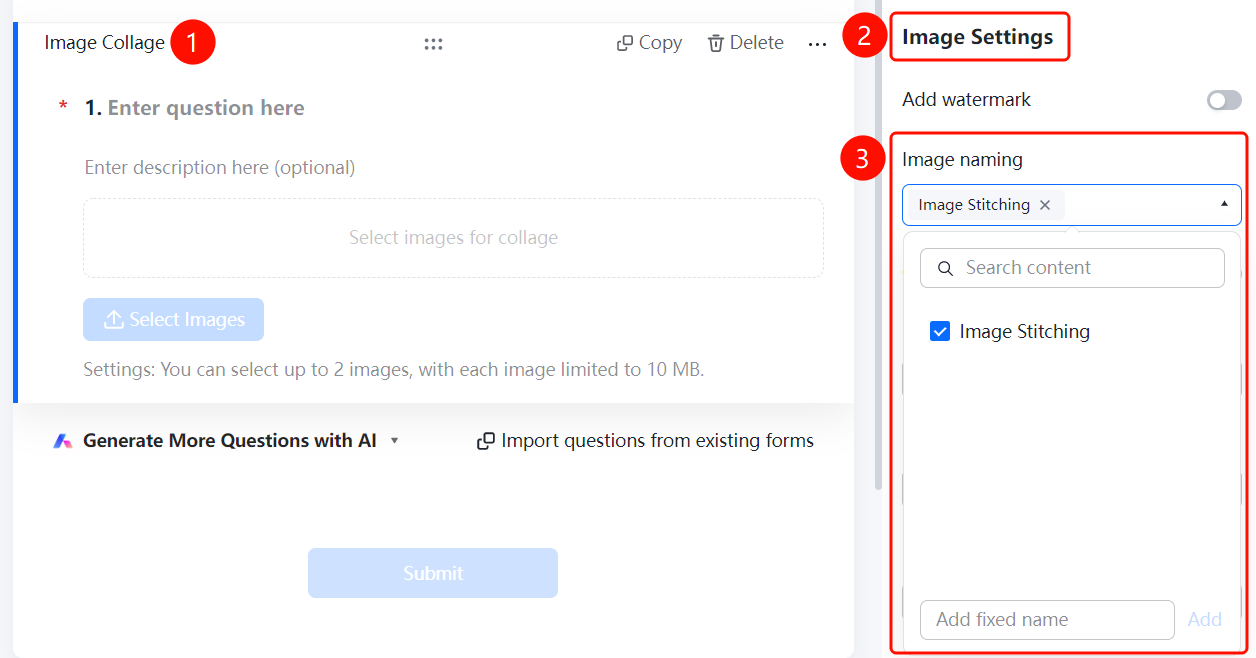

Set Image Naming Method

Feature Entry
Puzzle Question → 「Image Settings」 → 「Image Naming Method」 dropdown menu

1. Click the added puzzle question
2. In the right 「Image Settings」 panel, click the 「Image Naming Method」 dropdown menu
3. Select the naming method: 「Puzzle」 or 「Add custom fixed naming」

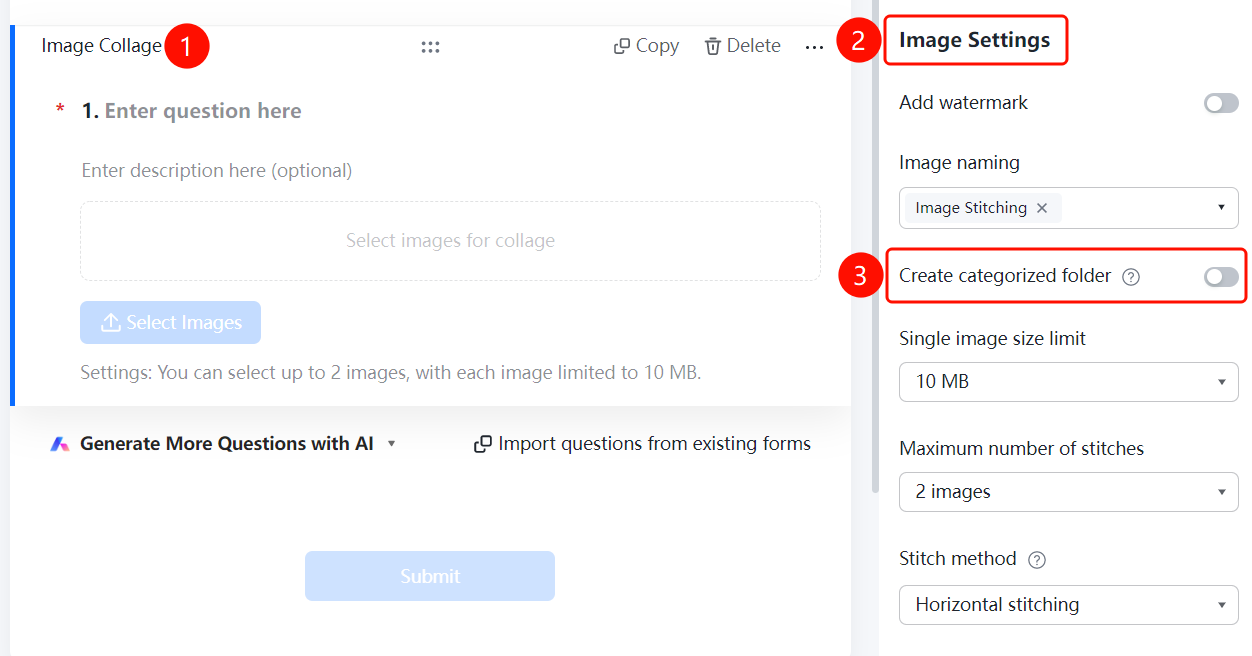

Set Create Classification Folder

Feature Entry
Puzzle Question → 「Image Settings」 → 「Create Classification Folder」 toggle

1. Click the added puzzle question
2. In the right 「Image Settings」 panel, turn on the 「Create Classification Folder」 toggle
3. After turning it on, folders will be automatically created according to the folder naming method, and the collected images will be classified and summarized

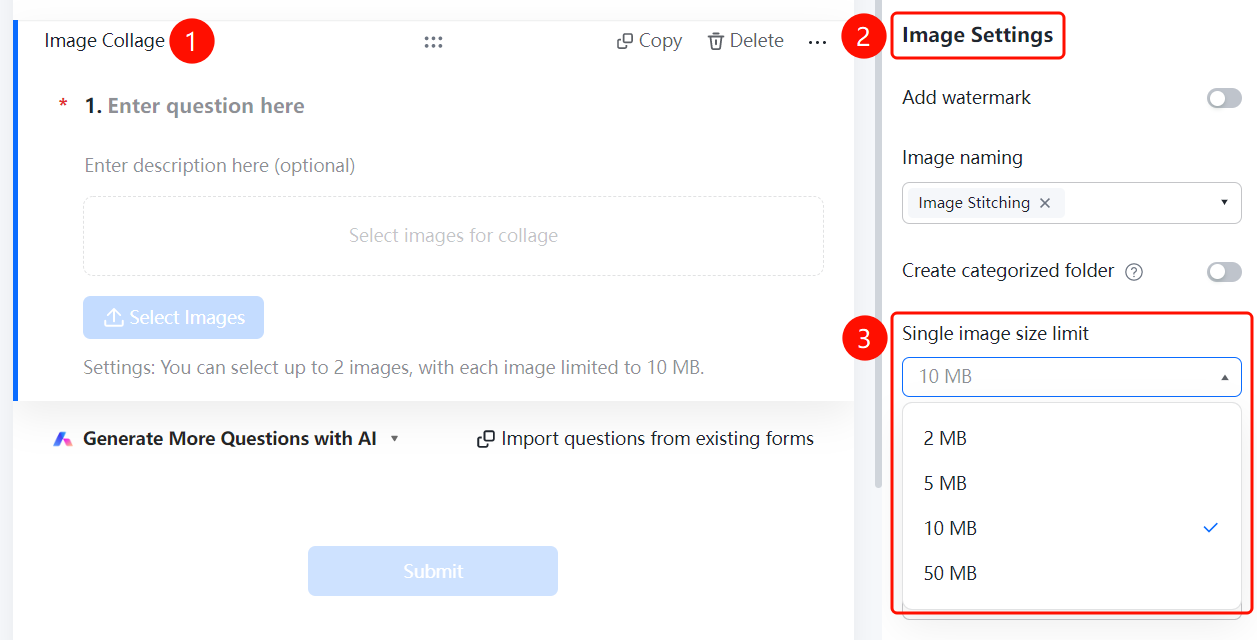

Set Single Image Size Limit

Feature Entry
Puzzle Question → 「Image Settings」 → 「Single Image Size Limit」 dropdown menu

1. Click the added puzzle question
2. In the right 「Image Settings」 panel, click the 「Single Image Size Limit」 dropdown menu
3. Select the allowed size limit: 2M, 5M, 10M, or 50M

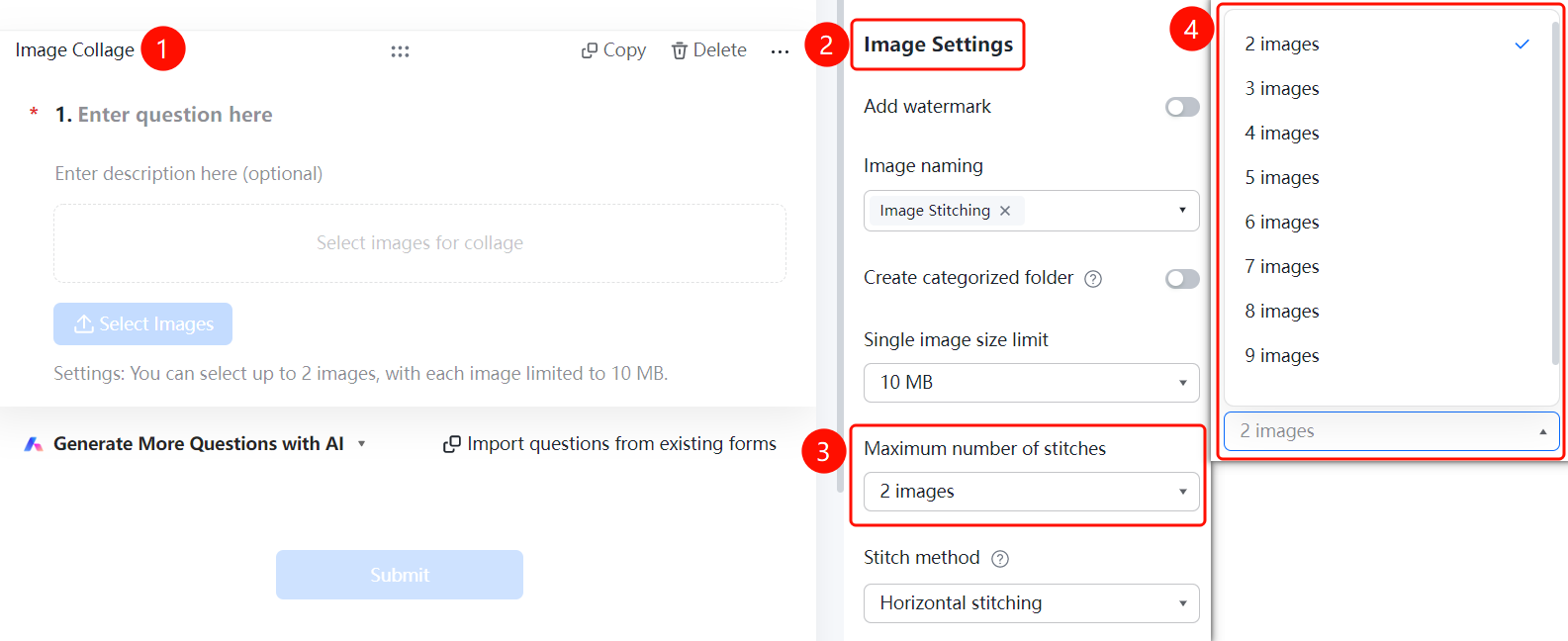

Set Maximum Stitching Number

Feature Entry
Puzzle Question → 「Image Settings」 → 「Maximum Stitching Number」 dropdown menu

1. Click the added puzzle question
2. In the right 「Image Settings」 panel, click the 「Maximum Stitching Number」 dropdown menu
3. Select the number of images allowed to be uploaded and stitched

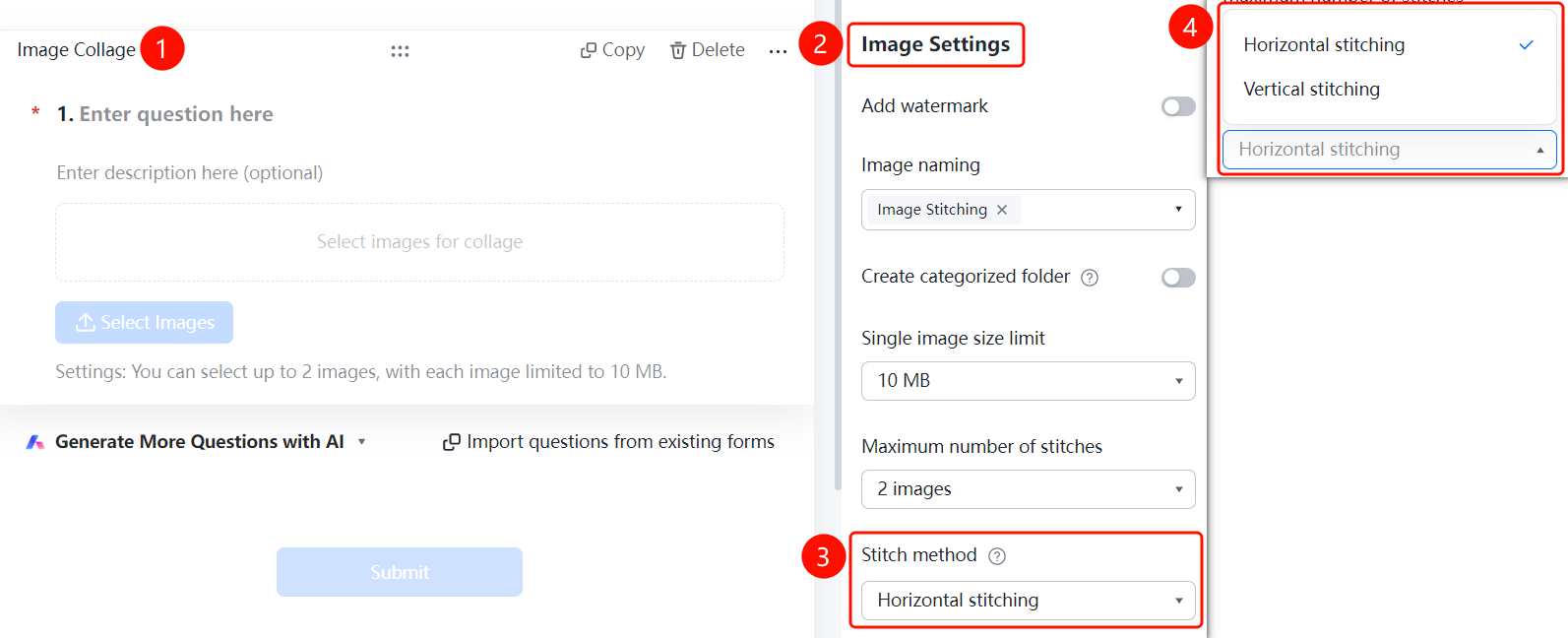

Set Stitching Method

Feature Entry
Puzzle Question → 「Image Settings」 → 「Stitching Method」 dropdown menu

1. Click the added puzzle question
2. In the right 「Image Settings」 panel, click the 「Stitching Method」 dropdown menu
3. Select the stitching method: 「Horizontal Stitching」 or 「Vertical Stitching」
4. The collected images will be stitched in the order they were uploaded by the uploader

FAQ

Question 1: What scenarios are puzzle questions suitable for?

• Solution: Puzzle questions are suitable for scenarios where multiple images need to be collected and stitched into one large image, such as dual-code collection, front and back of ID card stitching, multi-angle product image collection, etc.

Question 2: What is the maximum number of images that can be stitched in a puzzle question?

• Solution: In the 「Image Settings」 panel, click the 「Maximum Stitching Number」 dropdown menu to set the number of images allowed to be uploaded and stitched.

Question 3: How to choose the stitching method?

• Solution: In the 「Image Settings」 panel, click the 「Stitching Method」 dropdown menu to select horizontal stitching or vertical stitching, and choose the appropriate stitching direction based on actual needs.

Notes

• The collected images will be stitched in the order they were uploaded by the uploader
• Enabling the create classification folder feature can help the Admin better manage the collected images
• The maximum single image size limit can be set to 50M; it is recommended to set it reasonably according to actual needs
