Feature Summary

After inserting a table in WPS Docs, if you want to quickly beautify the table appearance and unify the document layout style, the "Table Style" feature provides you with a rich set of preset styles and customization capabilities, helping you apply professional designs with one click and enhance the visual effect and reading experience of your document.

  • Preset Style Library: Provides various themed styles such as light, dark, and header row styles, applicable with one click
  • Custom Styles: Supports independent settings for fonts, borders, and shading for elements like header rows, summary rows, and striped rows

Feature Description

Feature Dimension Description
Membership Restriction Basic preset styles are free to use; some paid styles require membership activation
Version Restriction No version restrictions

Operation Steps

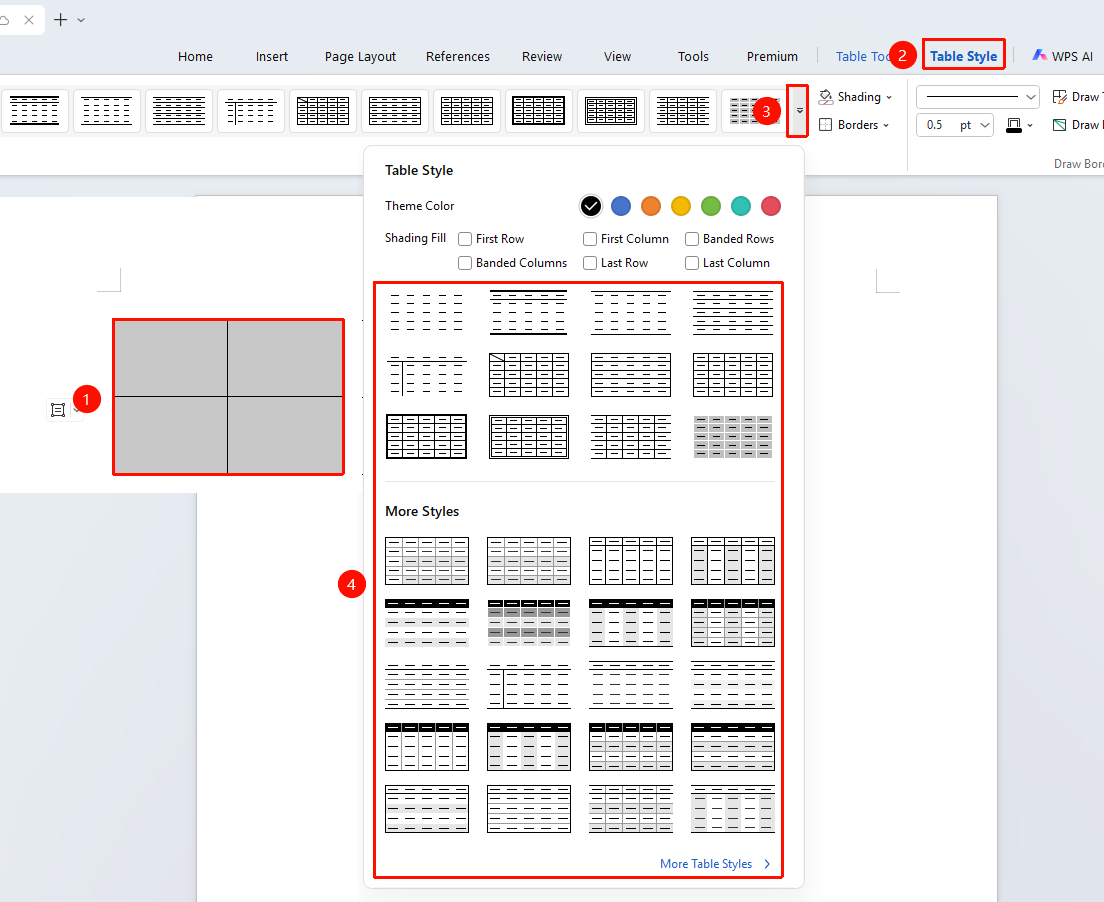

1. Applying Preset Table Styles

Some paid preset templates within this feature require membership activation to use.
Feature entry point: Select table → "Table Style"

Operation steps:

  1. Click the select-all marker in the upper-left corner of the table (or drag to select the entire table)
  2. Switch to the "Table Style" tab
  3. Browse preset styles in the "Table Style" group; hover the mouse for a live preview
  4. Click the target style to apply it with one click
  5. Click the style set dropdown menu to view more preset styles; click "More Table Styles" to open the right-side "Task Pane" > "Beautification Assistant", where you can access more templates and paid templates

截图

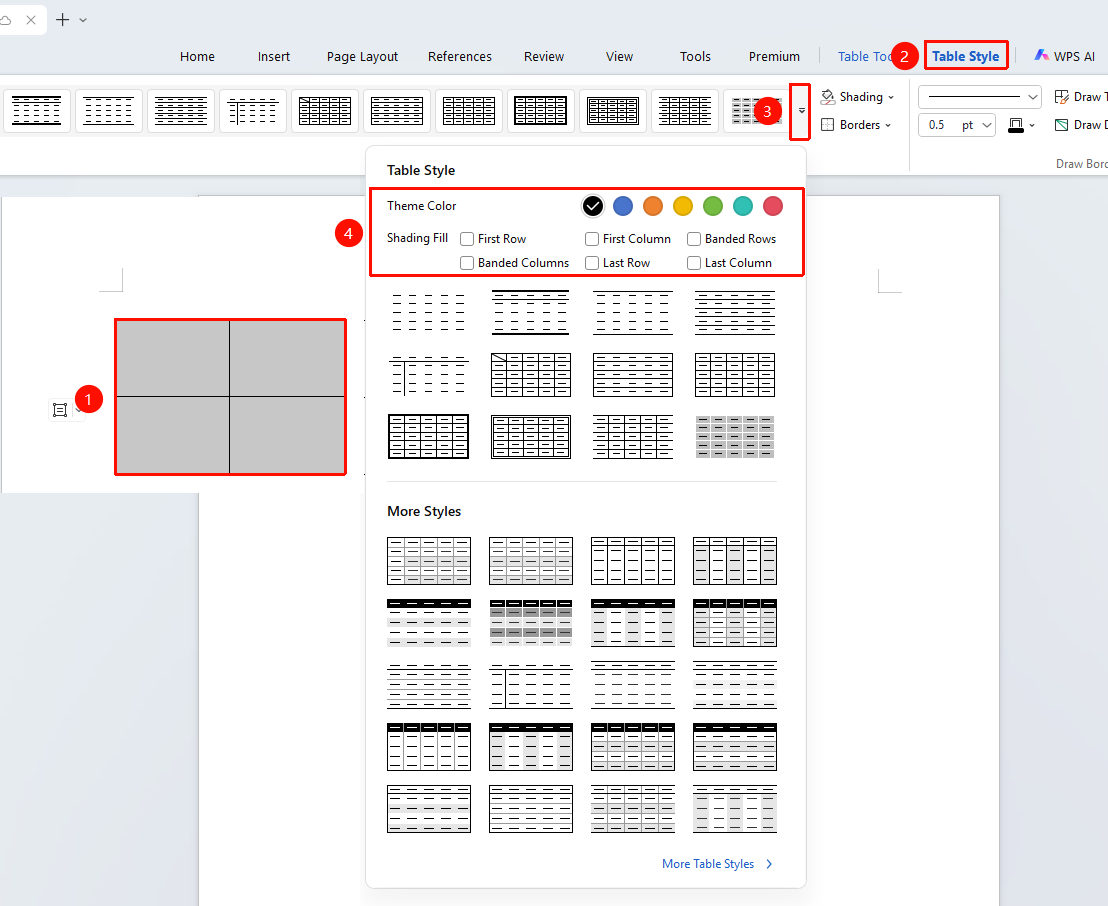

2. Changing Preset Table Styles

Feature entry point: "Table Style" tab → dropdown menu to change preset styles

Operation steps:

  1. Select the table range whose style you want to change
  2. Switch to the "Table Style" tab
  3. Click the style set dropdown menu to customize styles
  4. Click to change "Theme Colors", check the "Shading Fill" range, and the preset style will update its settings
  5. Click the desired style to apply it

截图

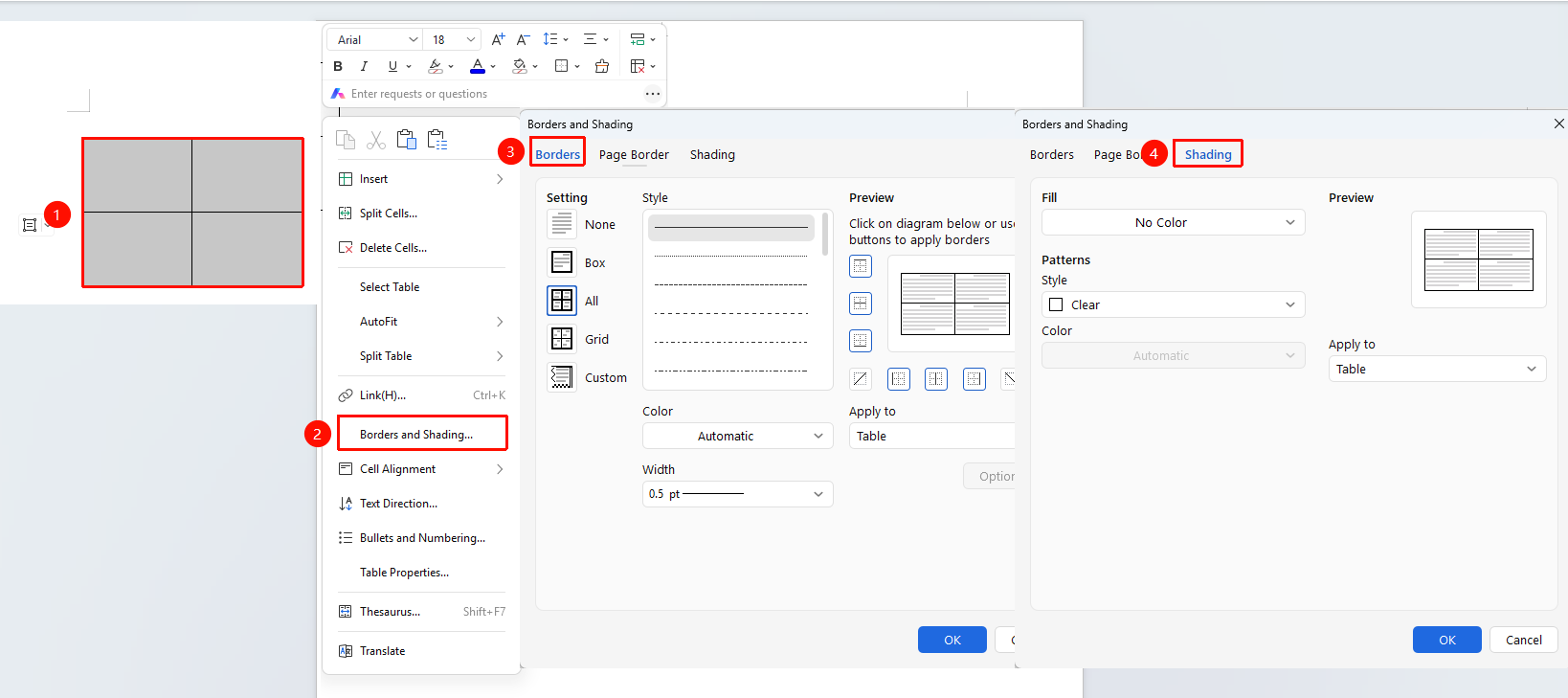

3. Fine-Tuning Table Borders and Shading

Feature entry point: Select table/cell → Right-click munu → "Borders and Shading"

Operation steps:

  1. Select the table or specific cells you need to adjust
  2. Right-click and select "Borders and Shading" tab
  3. You can set separately:
  • Borders: Line style (solid, dashed, double, etc.), color, width (point size)
  • Shading: Solid color fill, pattern fill
  • Apply to: Entire table, current cell, specific border lines
  1. Click "OK" to apply
    Fine-tuning tip: Hold down the Alt key and drag a border line to precisely fine-tune the position of a single border line without affecting other border lines.

截图

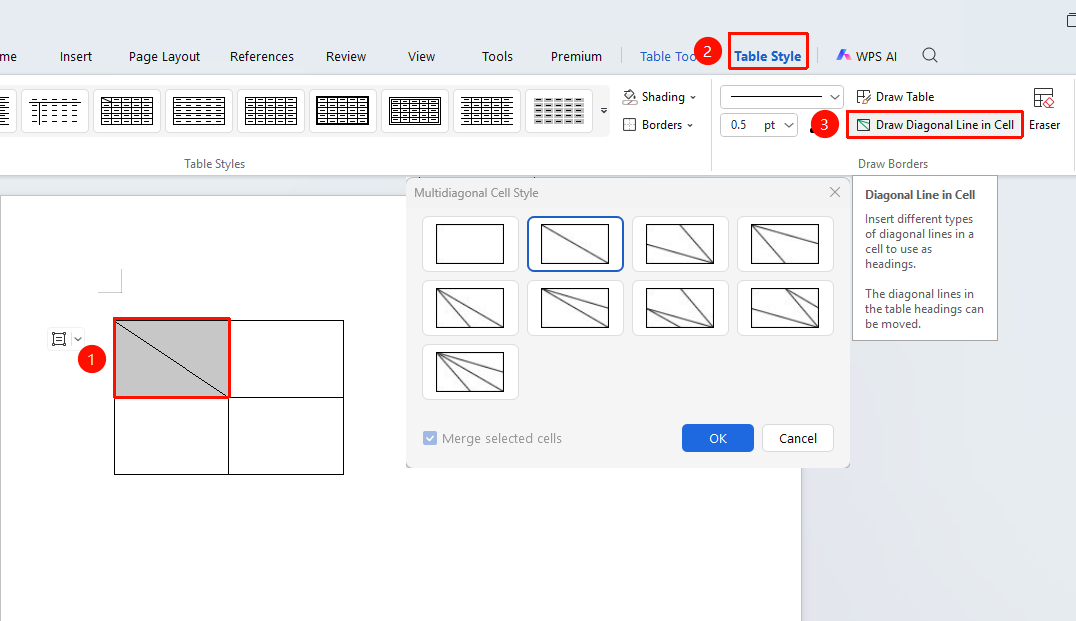

4. Drawing Diagonal Table Headers

Feature entry point: Select cell → "Table Style" tab → "Diagonal Header"
Operation steps:

  1. Select the cell where you want to add a diagonal header (usually the first cell in the upper-left corner)
  2. Click the "Table Style" tab → "Diagonal Header"
  3. In the pop-up diagonal style selection box, choose the desired diagonal style (single diagonal, double diagonal, etc.)
  4. Click OK to complete the setting

截图

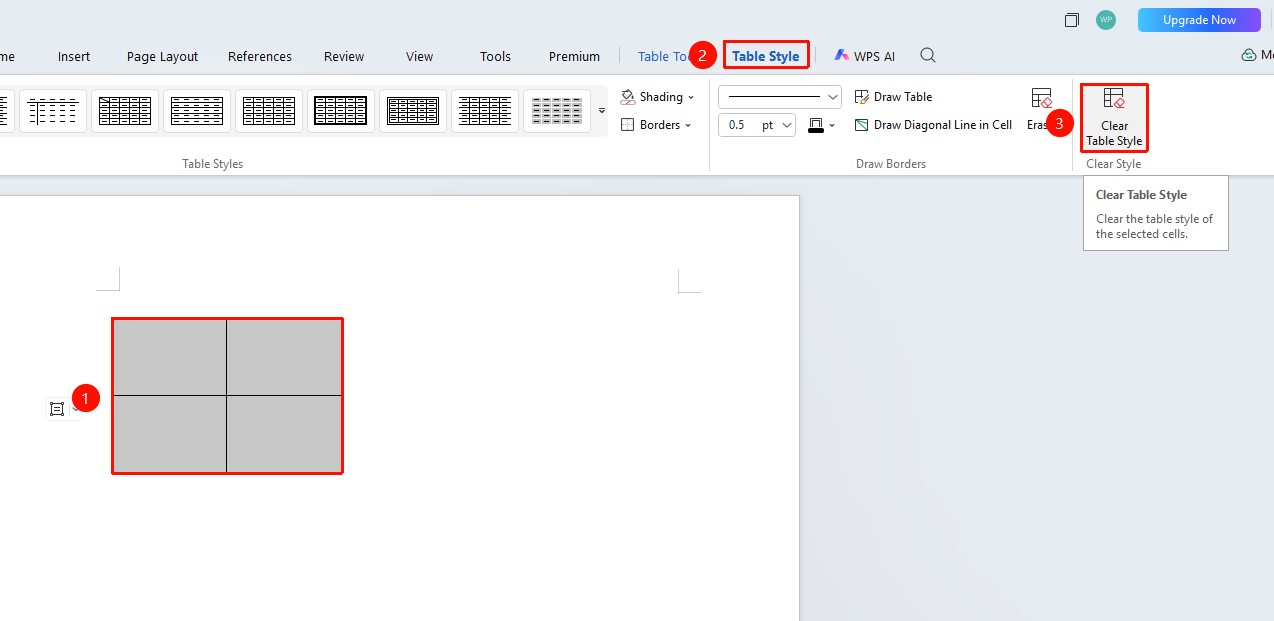

5. Clearing Table Styles

Feature entry point: Select table range → "Table Style" tab → "Clear Table Style"
Operation steps:

  1. Select the table range whose formatting you want to clear
  2. Switch to the "Table Style" tab
  3. Click "Clear Table Style" to remove all styles contained in the table and restore it to a transparent table

截图

Frequently Asked Questions

Question 1: After applying a table style, all content is squeezed into one cell

  • Solution: The delimiter was selected incorrectly. Check the delimiter actually used in the text and re-select the correct delimiter type. For Chinese commas, you need to select "Other Characters" and manually enter it.

Question 2: What should I do if modifying borders/shading has no effect?- Solution: Check whether the application range is correct. You need to select the entire target table/cell range before applying settings; selecting only part of the content will modify only that part. Also ensure the document format is .docx and that WPS is the latest version.

Question 3: How to enter text in a diagonal header?

  • Method 1: In the cell, first enter the upper-right text, press Space, then enter the lower-left text, and adjust the position using line breaks and spaces;
  • Method 2: Click "Insert" → "Text Box", enter the corresponding text separately, set the text box to "No Outline", and then move it to the appropriate position.

Question 4: Inserted images in a table do not display or display incompletely

  • Solution: Adjust the row height to fit the image size and check "Allow row to break across pages"; when there are many images, insert them in batches to avoid display anomalies caused by loading all at once.

Notes

Document format: It is recommended to save in .docx format for optimal compatibility
