Feature Summary

The Image Width feature enables precise control over an image’s width — either independently or proportionally (i.e., with aspect ratio preserved), ensuring optimal alignment with the slide layout.

Feature Description

Feature Dimension Description
Membership Restriction No membership restriction
Version Restriction No version restriction

Operation Steps

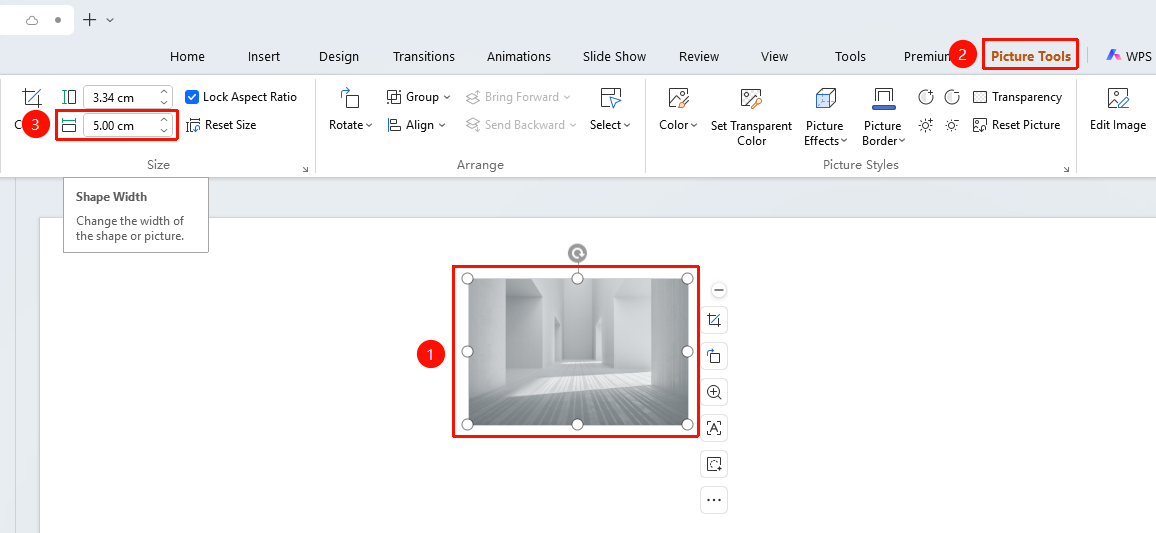

Setting Image Width

Feature Entry
"Picture Format" tab → Size area → "Width" input box

  1. Select the image whose width you want to adjust
  2. Click the "Picture Format" tab
  3. Find the "Width" input box in the Size area
  4. Enter the desired width value (unit: cm) or use the buttons to fine-tune
  5. Press Enter to confirm, and the image width will be adjusted immediately

截图

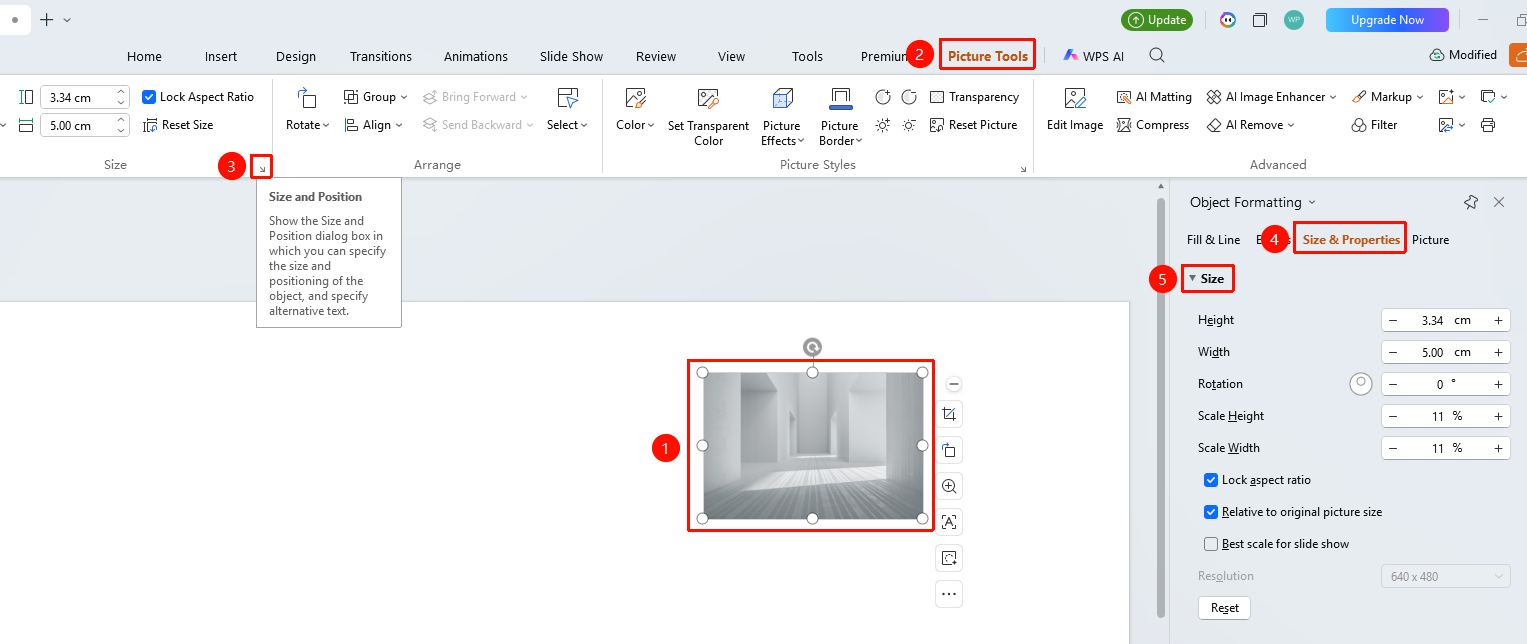

Precisely Setting Image Size

Feature Entry ①
"Picture Format" tab → Expand menu button in the lower-right corner of the Size area → "Format Picture" task pane

  1. Select the image and click the "Picture Format" tab
  2. Click the expand menu button in the lower-right corner of the Size area
  3. Open the "Object Formatting" task pane
  4. In the "Size & Properties" tab, set:
  • "Height": Set the image height
  • "Width": Set the image width
  • "Scale Height": Scale the height by percentage
  • "Scale Width": Scale the width by percentage
  • "Lock Aspect Ratio": Maintain the image proportion
  • "Relative to Original Picture Size": Base on the original size
  • "Best Scale for Slide Show": Automatically fit the slide
  • "Reset": Restore the original size

截图

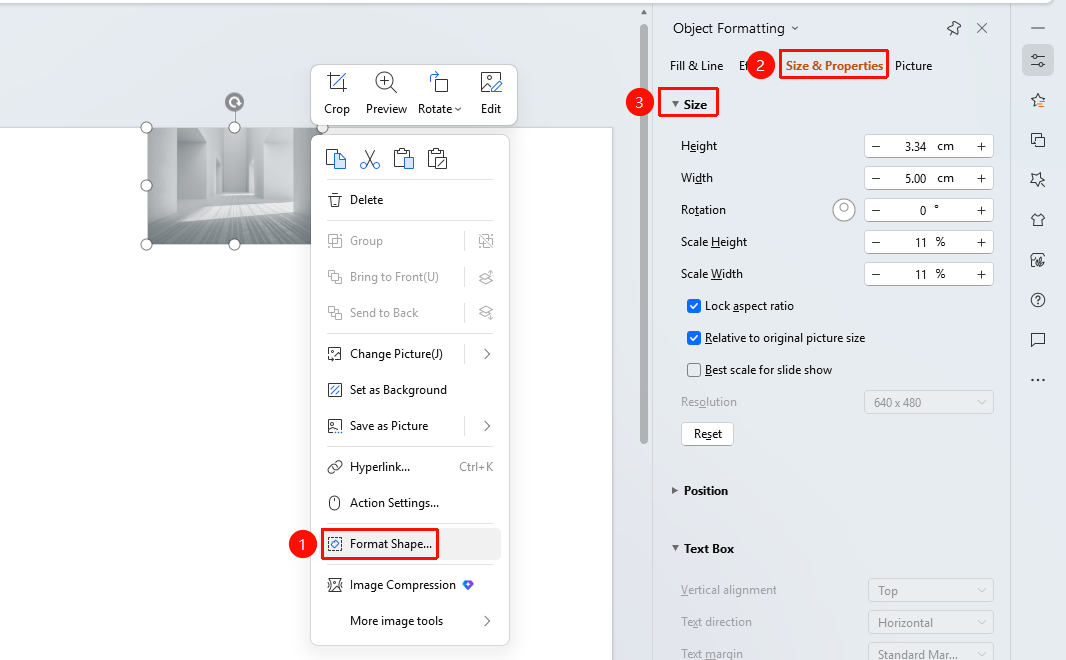

Feature Entry ②
Image right-click menu → "Format Object"

  1. Select the image and right-click
  2. Select "Format Object"
  3. In the "Object Properties" panel on the right, click the "Size & Properties" tab
  4. Expand "Size" to configure

截图

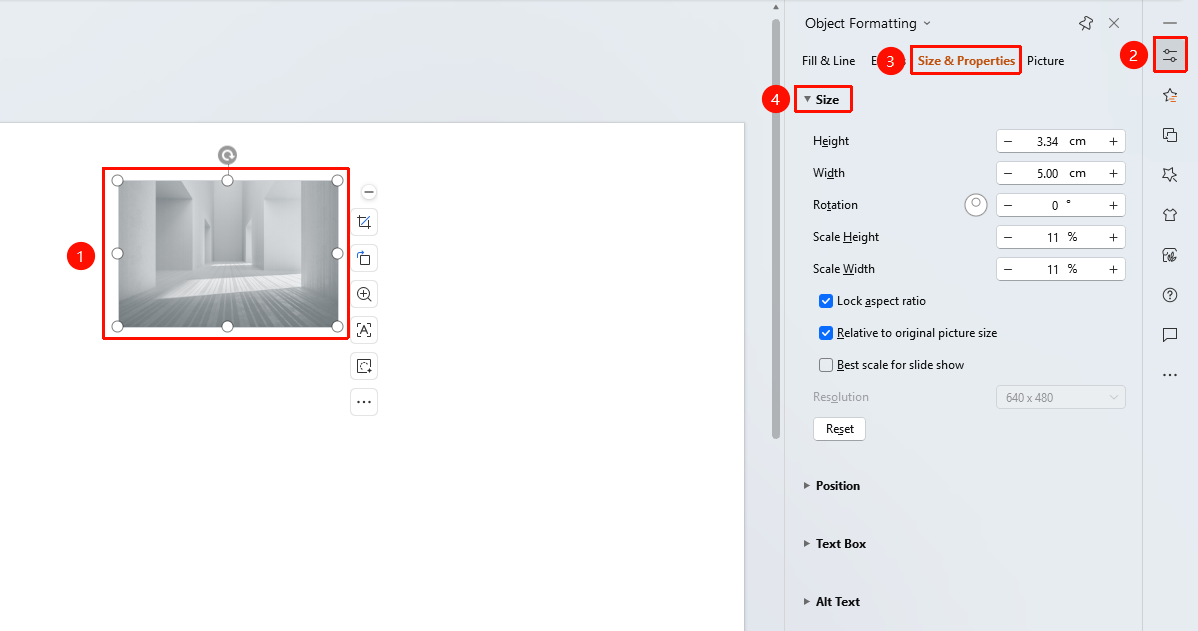

Feature Entry ③
Task pane → "Properties" button

  1. Select the image
  2. Click the "Properties" button in the task pane on the right
  3. Click the "Size & Properties" tab
  4. Expand "Size" to configure

截图

FAQ

Q1: The image proportion is incorrect after adjusting the width

  • Solution: Check if Lock Aspect Ratio is selected. When selected, adjusting the width will automatically adjust the height proportionally to maintain the image ratio.

Q2: Can width and height be precisely set at the same time?

  • Solution: Yes. Enter the width and height values separately in the Size area, but note that Lock Aspect Ratio may cause the values to adjust automatically.

Notes

  • You can quickly adjust the width by dragging the image border with the mouse
  • Decimal input is supported for precise adjustment
