Feature Summary

The Reflection feature is used to add a mirror reflection effect to images. You can set the transparency, size, and distance of the reflection to give the image a specular reflection visual effect.

Feature Description

Feature Dimension Description
Membership Restriction No membership restriction
Version Restriction No version restriction

Operation Steps

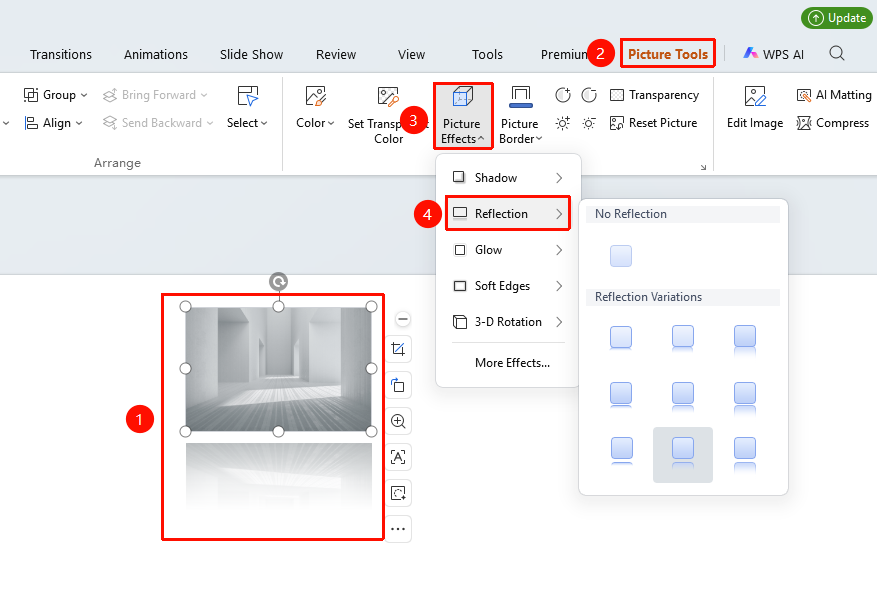

Using Preset Reflections

Feature Entry
"Picture Tools" tab → "Effects" → "Reflection"

  1. Select the image you want to add a reflection to
  2. Click the "Picture Tools" tab
  3. Click the "Effects" button
  4. Select "Reflection"
  5. Choose a preset reflection style:
  • "No Reflection": Remove the reflection effect
  • "Reflection Variations": Choose reflection effects with different distances and transparency

截图

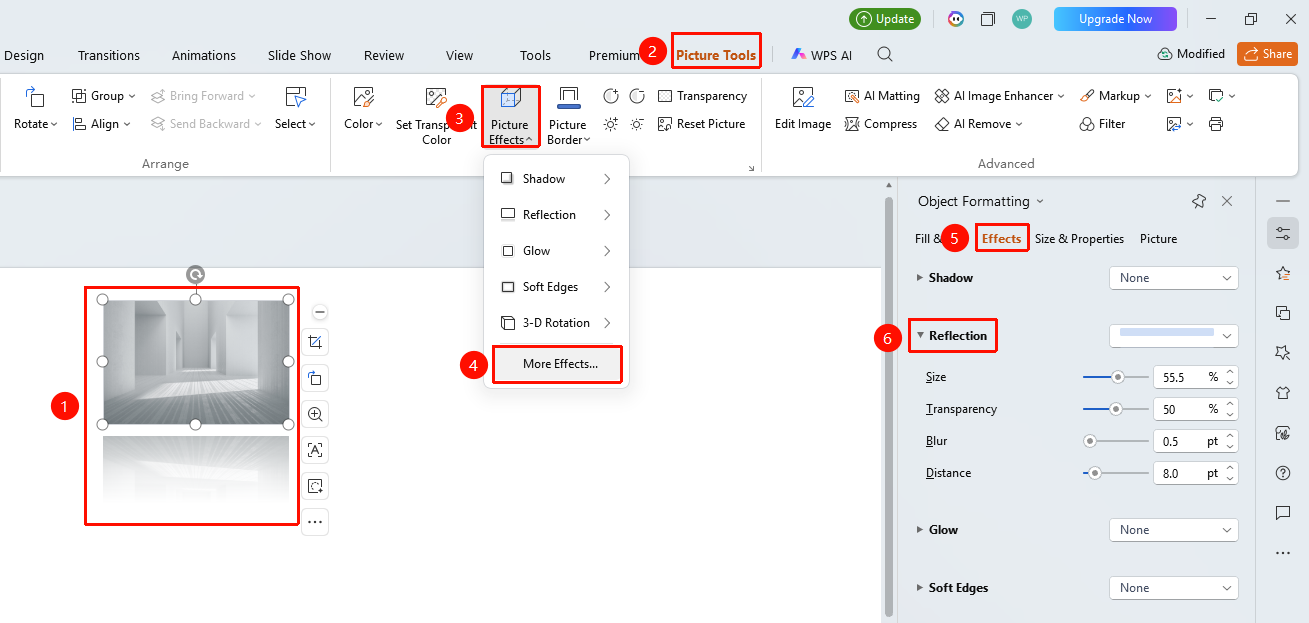

Customizing Reflection Settings

Feature Entry ①
"Picture Tools" tab → "Effects" → "More Settings" → "Object Properties" → "Effects" → "Reflection"

  1. Select the image you want to set, click "Effects" under the "Picture Tools" tab
  2. Click "More Settings" to open the "Object Properties" task pane
  3. Under the "Effects" option, click "Reflection" to expand the settings menu
  4. Adjust in the right task pane:
  • "Transparency": Adjust the transparency level of the reflection
  • "Size": Adjust the display ratio of the reflection
  • "Blur": Adjust the blurriness of the reflection edge
  • "Distance": Adjust the distance between the reflection and the image

截图

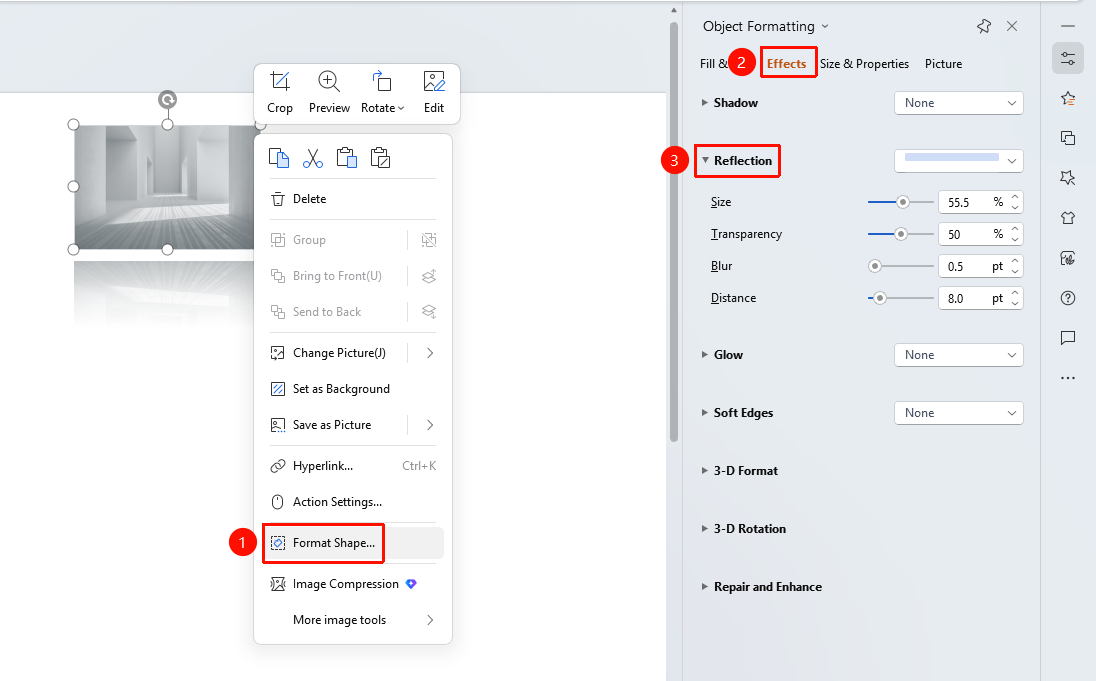

Feature Entry ②
Image right-click menu → "Format Object"

  1. Select the image, right-click
  2. Select "Format Object"
  3. In the right "Object Properties" panel, click the "Effects" tab
  4. Expand "Reflection" to configure

截图

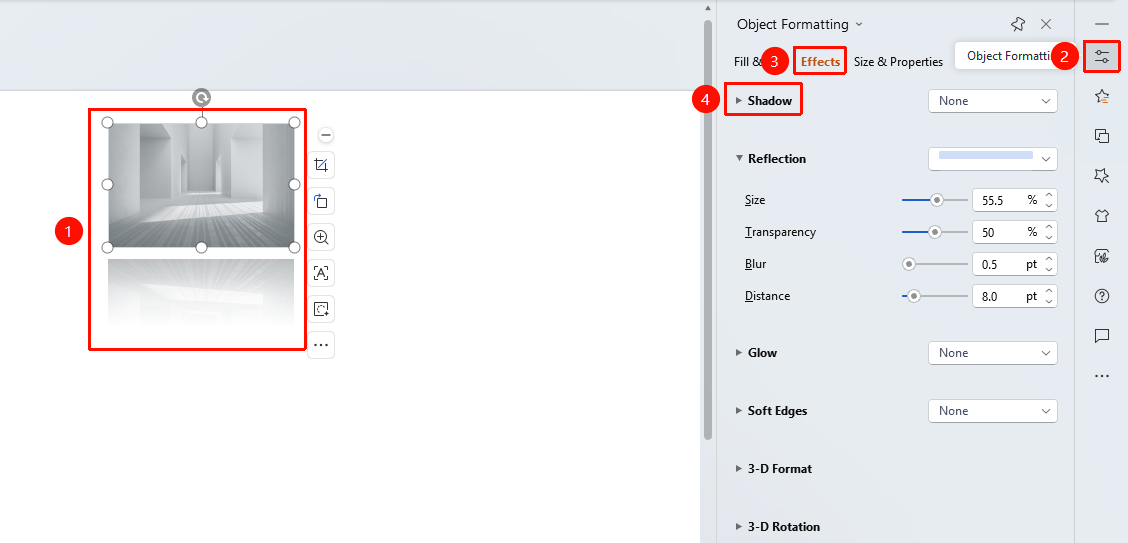

Feature Entry ③
Task Pane → "Properties" button

  1. Select the image
  2. Click the "Properties" button in the right task pane
  3. Click the "Effects" tab
  4. Expand "Reflection" to configure

截图

FAQ

Q1: Which images are suitable for adding a reflection effect?

  • Solution: Images with clear subjects, such as portraits, product photos, and architecture, have better reflection effects. The reflection effect may not be obvious for images with complex backgrounds.

Q2: How to make the reflection clearer?

  • Solution: Lower the transparency value and decrease the blur value to display a clearer reflection.

Q3: How to remove the reflection effect?

  • Solution: Select No Reflection in the reflection options, or click Reset Style to clear all effects.

Notes

  • The reflection effect will occupy space below the image, ensure there is enough room
  • Reflection is suitable for display-oriented images, not for content-dense images
