Feature Summary

The image rotation feature is used to change the rotation angle of an image. It supports free rotation, angle-based rotation, and flipping operations, allowing images to present different display effects.

Feature Description

Feature Dimension Description
Membership Restriction No membership restriction
Version Restriction No version restriction

Operation Steps

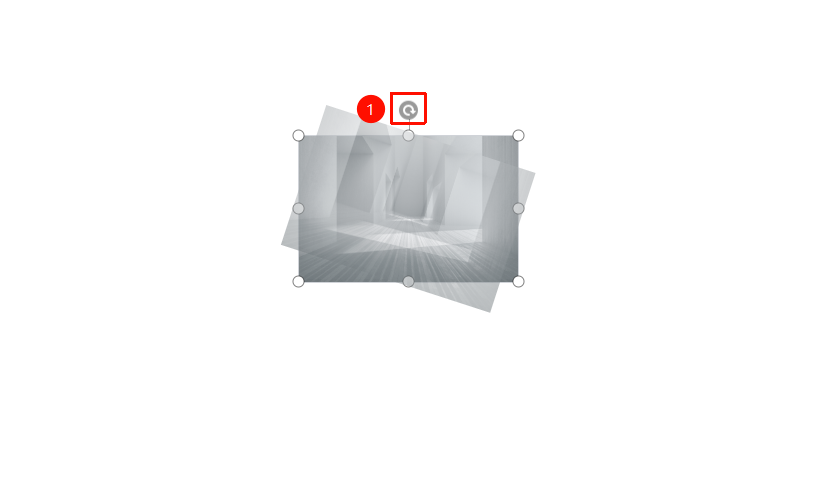

Free Rotation of Images

Feature Entry
The top-center rotation handle

  1. Select the image you want to rotate
  2. Move the mouse cursor to the rotation control point (circular arrow) at the top of the image
  3. Hold down the left mouse button and drag
  4. The image rotates following the mouse movement
  5. Release the mouse button to complete the rotation

截图

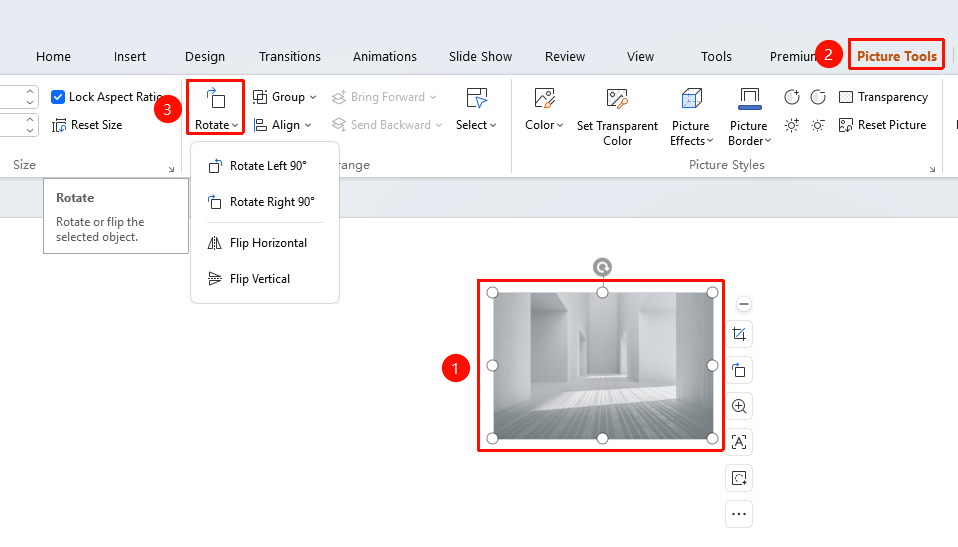

Rotate Image by Angle

Feature Entry ①
"Picture Tools" tab → "Rotate"

  1. Select the image and click the "Picture Tools" tab
  2. Click the "Rotate" button
  3. Select a preset rotation option:
  • "Rotate Right 90°"
  • "Rotate Left 90°"
  • "Flip Vertical"
  • "Flip Horizontal"

截图

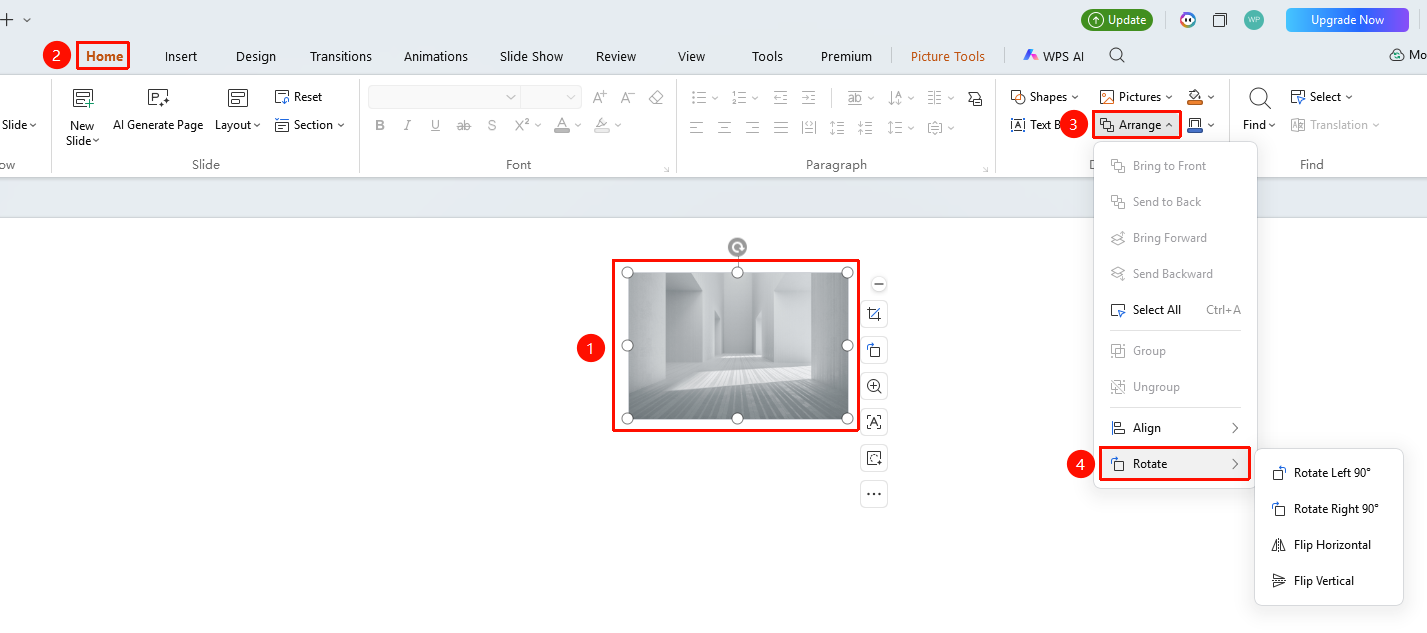

"Home" tab → "Arrange" → "Rotate"
Feature Entry ②

  1. Select the image you want to rotate
  2. Click the "Home" tab at the top
  3. Click "Arrange" → "Rotate" button in sequence to expand and set the following options
  • "Rotate Right 90°" : Rotate 90 degrees to the right
  • "Rotate Left 90°" : Rotate 90 degrees to the left
  • "Flip Vertical" : Flip the shape vertically
  • "Flip Horizontal" : Flip the shape horizontally

截图

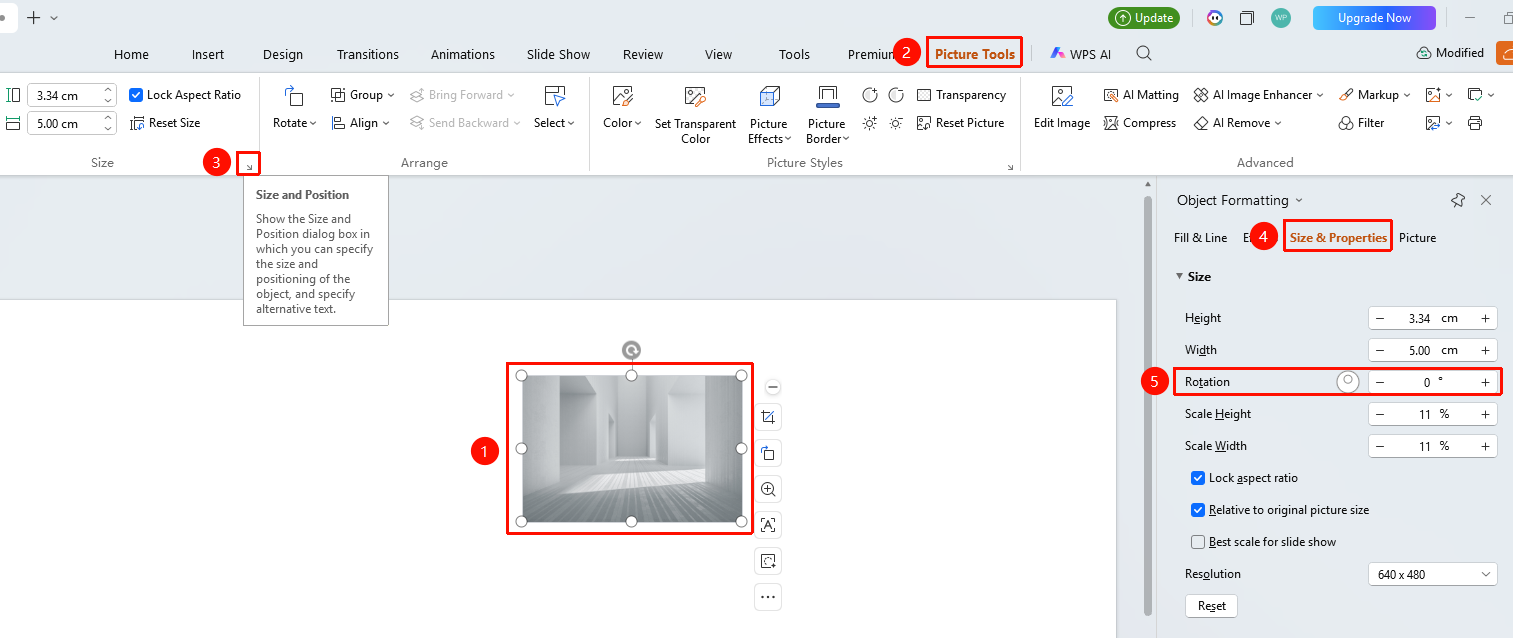

Precisely Set Rotation Angle

Feature Entry
"Picture Tools" tab → "Size" function group expand arrow → "Size & Properties" → "Rotate"

  1. Select the image, click the expand arrow at the bottom right corner of the "Size" function group under the "Picture Tools" tab to expand the side image object properties panel
  2. In the side object properties panel, switch to the "Size & Properties" tab
  3. Locate the "Rotate" option
  4. Enter the precise rotation angle in the dialog box or use the rotation controller to freely adjust the rotation angle
  5. Preview the rotation effect in real time, and click on a blank area to apply

截图

Frequently Asked Questions

Question 1: How to rotate an image to a precise angle

  • Solution: Click the rotation dropdown menu, select other rotation options, and enter the precise angle value in the dialog box.

Question 2: How to quickly flip an image horizontally or vertically

  • Solution: Click the rotate button and select Flip Horizontal or Flip Vertical.

Question 3: How to restore the original state after rotating an image

  • Solution: Use Ctrl+Z to undo the rotation operation, or use the reset size feature.

Notes

  • Holding the Shift key during free rotation enables step rotation at 15-degree increments
  • Rotation operations can be combined with operations such as cropping and scaling
  • Supports 360-degree rotation at any angle
  • Right-clicking on an image can quickly bring up the "Rotate" menu
