Feature Summary

The picture border feature is used to add border lines to images. You can customize the border color, thickness, line style, and other settings to make images more attractive and prominent.

Feature Description

Feature Dimension Description
Membership Restriction Includes some membership features
Version Restriction No version restriction

Steps

Setting Picture Borders

Includes some membership features. Please note the membership indicator before use.

Feature Entry
"Picture Format" tab → "Border"

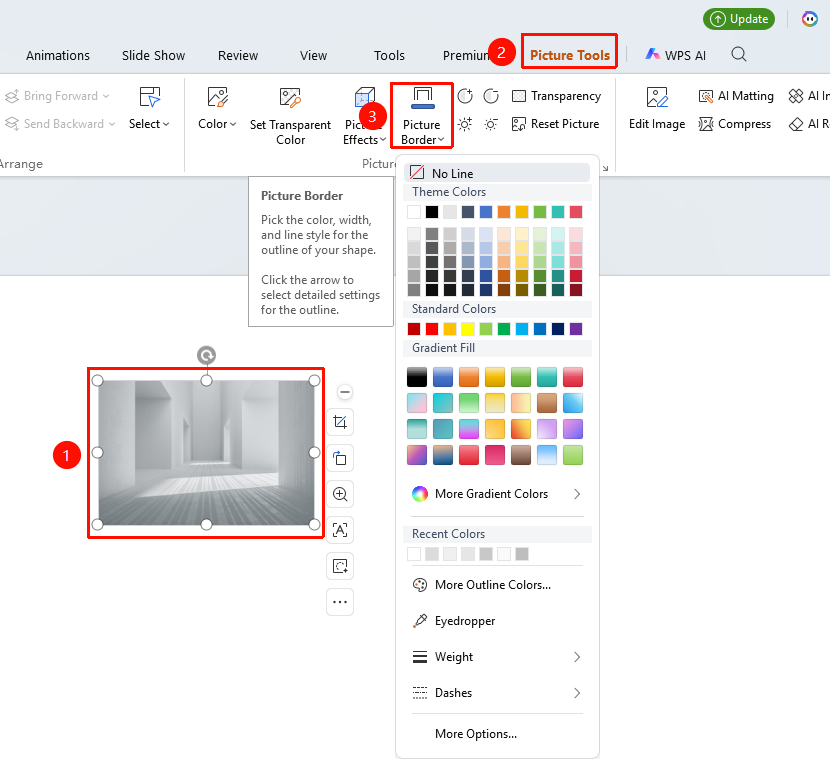

  1. Select the image you want to add a border to
  2. Click the "Picture Tools" tab at the top
  3. Find and click the "Picture Border" drop-down button to expand and set the following options
  • "Theme Colors" : Click preset colors such as theme colors or standard colors to quickly set a solid color border
  • "Gradient Fill" : Click gradient fill or preset colors under more fill colors to quickly set a gradient border
  • "More Border Colors" : Expand the full standard/RGB color palette
  • "Eyedropper" : Pick a color from anywhere on the screen as the border color
  • "Weight" : Set the thickness of the border line (0.25 pt ~ 6 pt)
  • "Dash Style" : Set the border to solid or dashed
  • "More Settings" : Jump to the side object properties panel for detailed settings

截图

Custom Border

Feature Entry
"Picture Tools" tab → "Border" → "More Settings" → "Format Picture" sidebar → "Line" tab

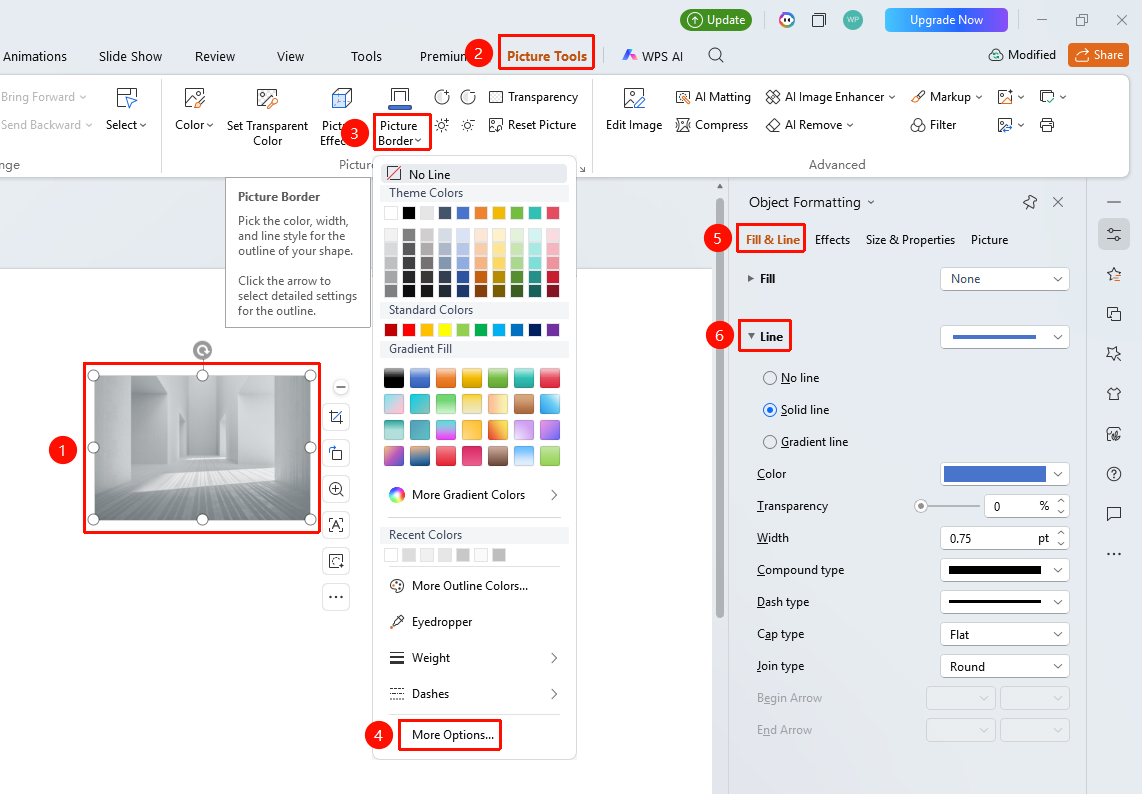

  1. Select the image you want to add a border to
  2. Click the "Picture Tools" tab
  3. Click the "Border" drop-down button to expand the drop-down menu
  4. Find and click "More Settings" in the drop-down menu to expand the "Object Properties" sidebar on the right
  5. Under the "Fill & Line" tab, click "Line"
  • "No Line" : Do not display a border
  • "Solid Line" : Customize a single-color solid border: color, transparency, line type, etc.
  • "Gradient Line" : Customize a gradient color border: gradient style, angle, transparency, brightness, etc.
  1. Preview the effect in real time, click a blank area to apply

截图

"Home" Tab Settings

Feature Entry
"Home" tab → "Shape Outline"

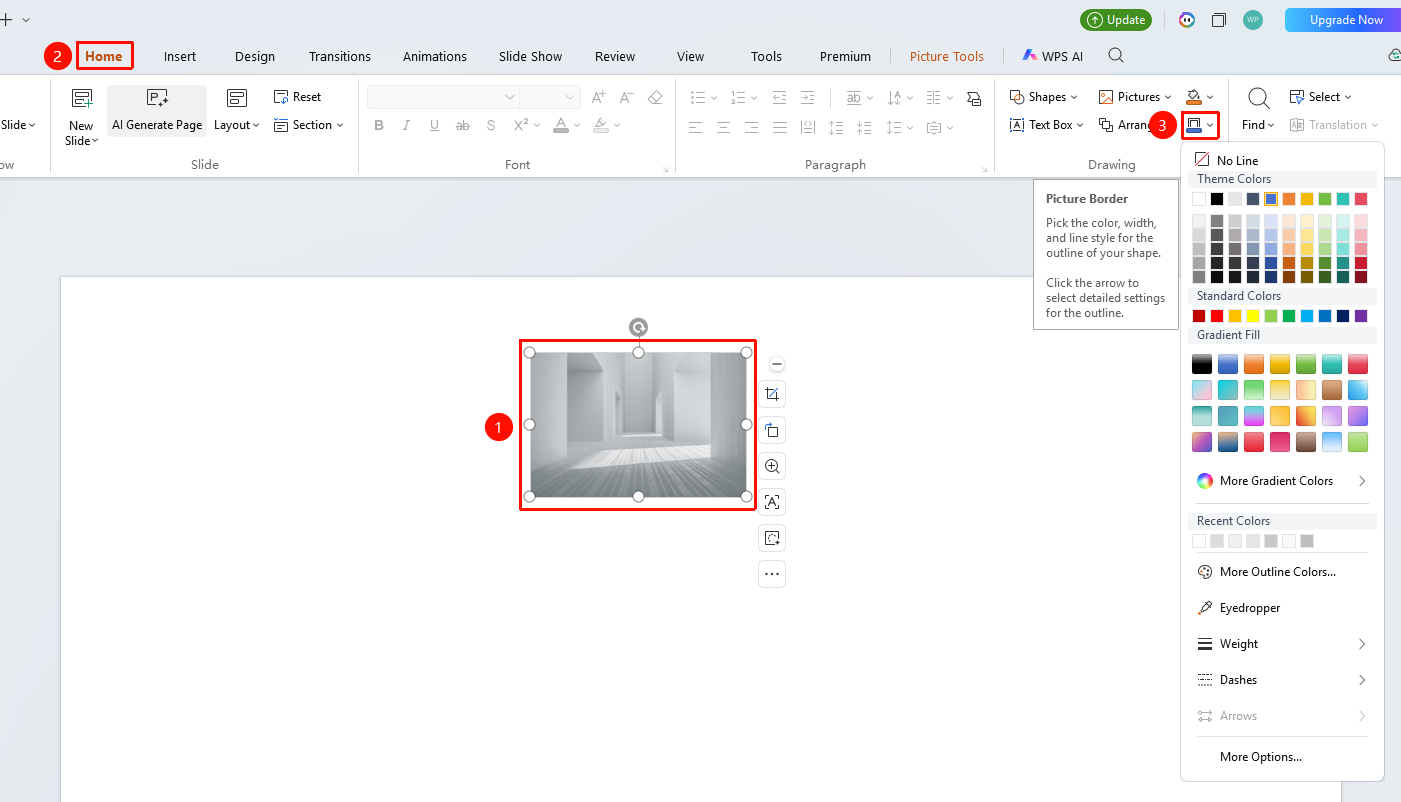

  1. Select the image you want to add a border to
  2. Click the "Home" tab
  3. Click the "Shape Outline" drop-down button
  4. You can set the border color, weight, line style, etc.

截图

Right-Click Menu Settings

Feature Entry
Image right-click menu → "Format Object"

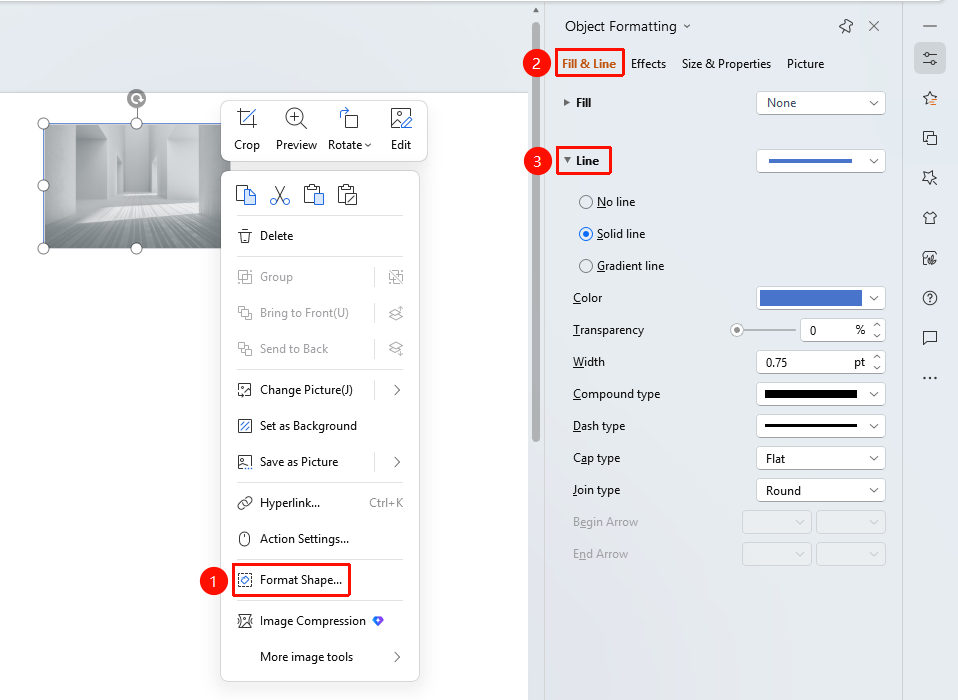

  1. Select the image you want to add a border to
  2. Right-click the image
  3. Select "Format Object"
  4. Set the border style in the "Object Properties" sidebar on the right

截图

Side Task Pane Settings

Feature Entry
Side "Task Pane" → "Properties"

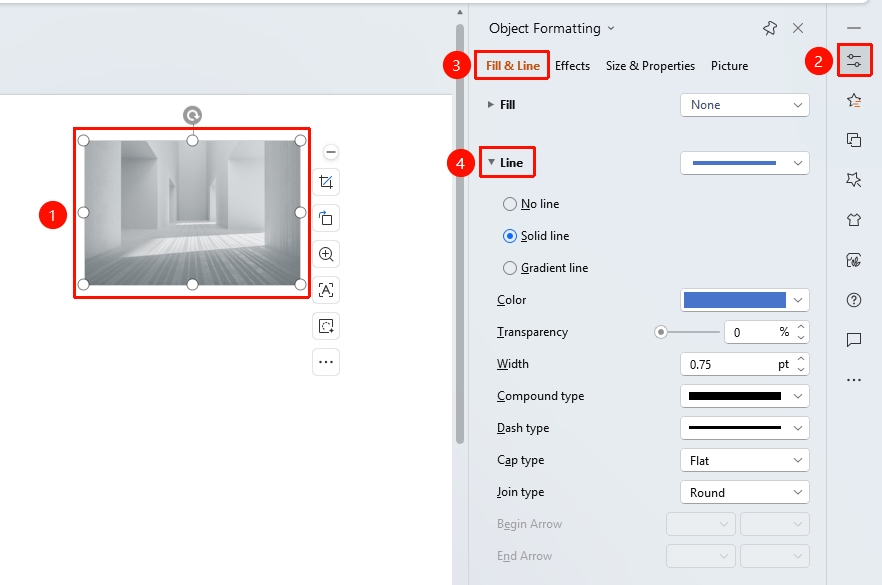

  1. Select the image you want to add a border to
  2. Click the side "Properties" button
  3. Set the border style in the "Object Properties" sidebar

截图

FAQ

Q1: How to quickly remove a border

  • Solution: Select "No Border Color" from the border drop-down menu, or select "No Line" in Object Properties.

Q2: How to set a dashed border

  • Solution: Click "Dash Style" in the border drop-down menu and select the desired dashed style.

Q3: How to set a gradient color border

  • Solution: Select "Gradient Fill" or select "Gradient Line" in Object Properties to set a multi-color gradient border.

Notes

  • The border will appear around the outside of the image
  • Border weight affects the visual size of the overall image
  • You can set border color, weight, and line style simultaneously
