WPS Slides Select & Edit Data Feature User Guide

Feature Summary

WPS Slides local mode supports selecting and editing chart data, allowing you to modify the data content displayed in the chart.

Feature Description

Feature Dimension	Description
Membership Restriction	No membership restriction
Version Restriction	No version restriction

Operation Steps

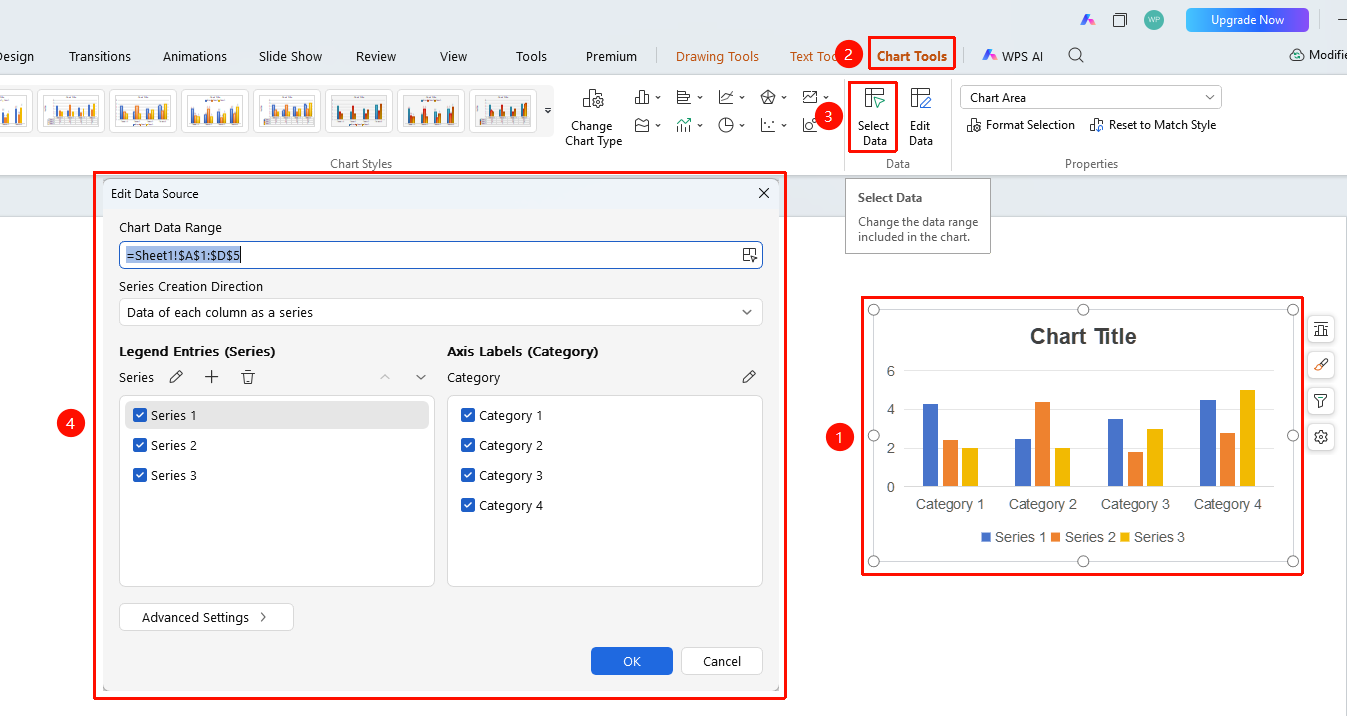

Select Data Source

Feature Entry
"Chart Tools" tab → "Select Data" button

1. Click to select the chart
2. Click the "Chart Tools" tab in the top menu bar
3. Click the "Select Data" button
4. Select the data range in the pop-up dialog box
5. Click OK to complete the data selection

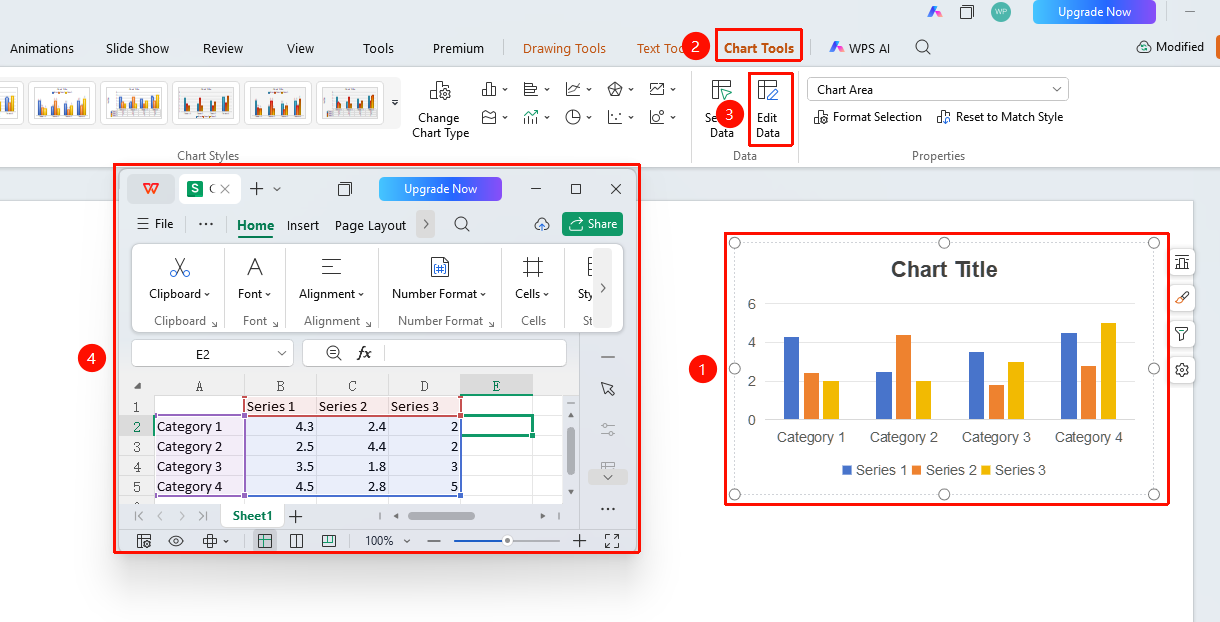

Edit Chart Data

Feature Entry
"Chart Tools" tab → "Edit Data" button

1. Click to select the chart
2. Click the "Edit Data" button
3. Modify the data in the embedded data table
4. The chart will automatically update after the modification is complete

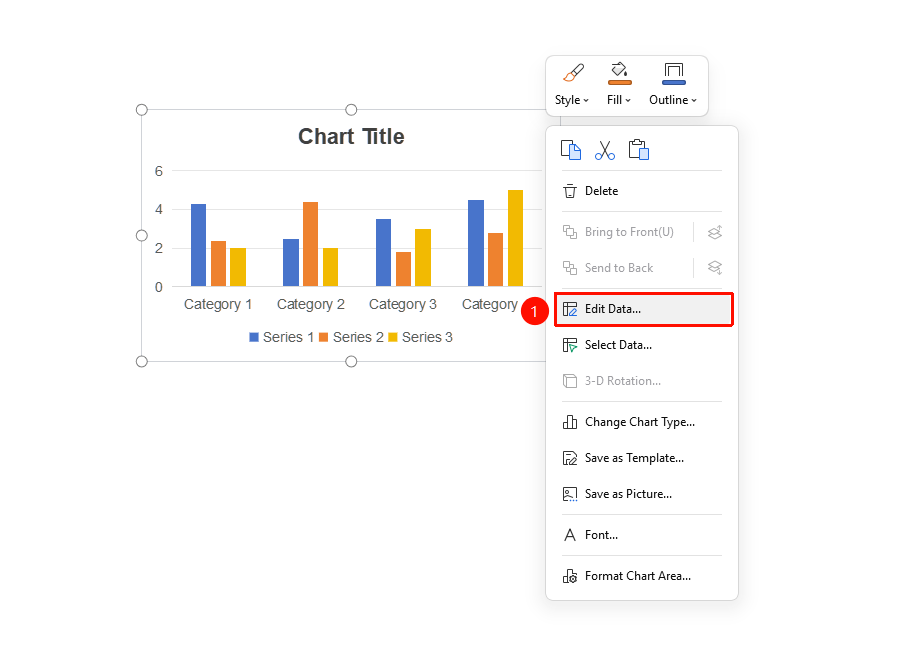

Edit Data via Right-Click

Feature Entry
Chart → Right-click → "Edit Data"

1. Right-click the chart
2. Select the "Edit Data" option
3. Modify the data in the Sheets
4. The chart updates automatically when you close the data table

Frequently Asked Questions

Q1: Will the chart update automatically after editing the data?

• Solution: Yes, the chart will update in real time after modifying the Sheets data.

Q2: How to add a new data series?

• Solution: Click Add Series in the Select Data dialog box and select the data range.

Q3: How to delete an unwanted data series?

• Solution: Select the series to be deleted in the Select Data dialog box and click the Delete button.

Notes

• Changes to the data range will affect the chart display
• It is recommended to plan the data structure before creating the chart
