Guide to Using the Outline Feature in WPS Slides Collaboration Mode

Feature Summary

In WPS Slides collaboration mode, set outline styles for objects (text boxes, shapes, etc.), including outline color, line weight, and line type.

Feature Description

Feature Dimension	Description
Member Restrictions	No member restrictions
Version Restrictions	No version restrictions

Steps

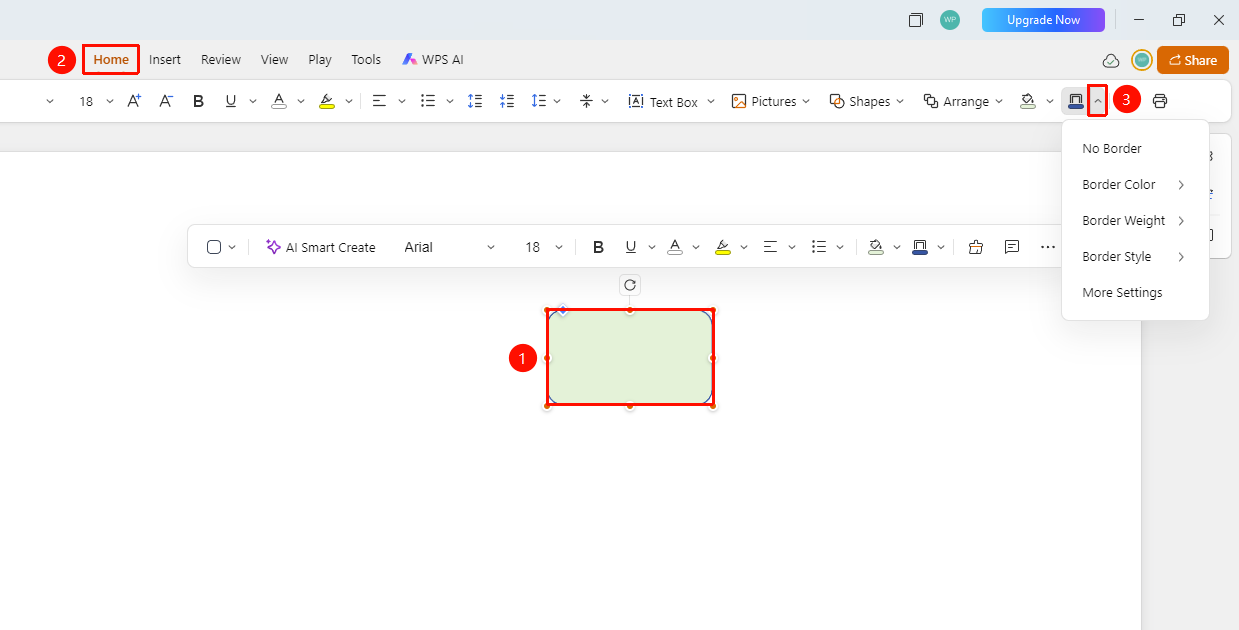

Set Outline via Ribbon

Feature Entry
"Home" tab → "Outline" drop-down button

1. Select the object (text box, shape, picture, etc.) for which you want to set the outline.

2. Switch to the "Home" tab at the top of the page.

3. Find and click the "Outline" drop-down button.

4. Select a setting item from the pop-up menu:

   • No Outline: Hide the outline.
   • Outline Color: Select the outline line color.
   • Line Weight: Set the thickness of the outline line.
   • Line Type: Select a line style such as solid or dashed.
   • More Settings: Open the detailed outline settings panel.

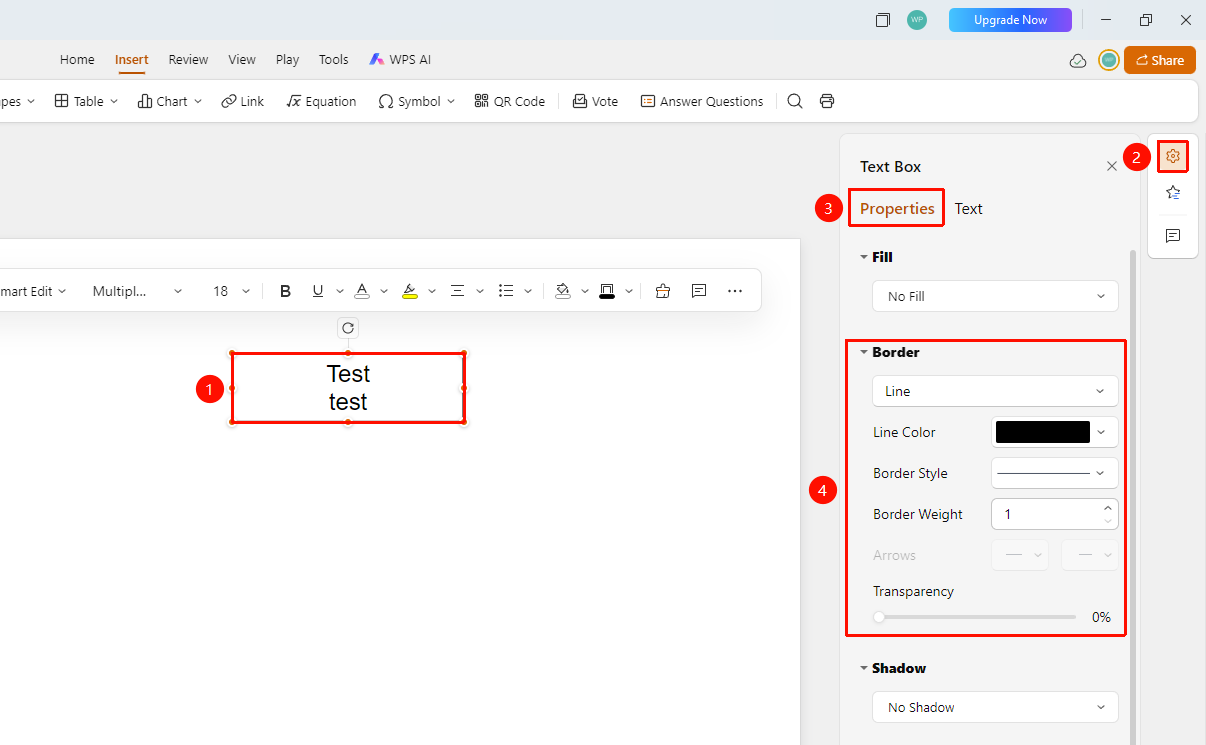

Set Outline via Task Pane

Feature Entry
Right task pane → "Format" → "Properties" → "Outline" area

1. Select the object (text box, shape, picture, etc.) for which you want to set the outline.

2. Click the "Format" option in the right task pane.

3. Switch to the "Properties" tab.

4. In the "Outline" area, you can set:

   • Line Color
   • Line Weight
   • Line Type
   • Arrow Type
   • Opacity

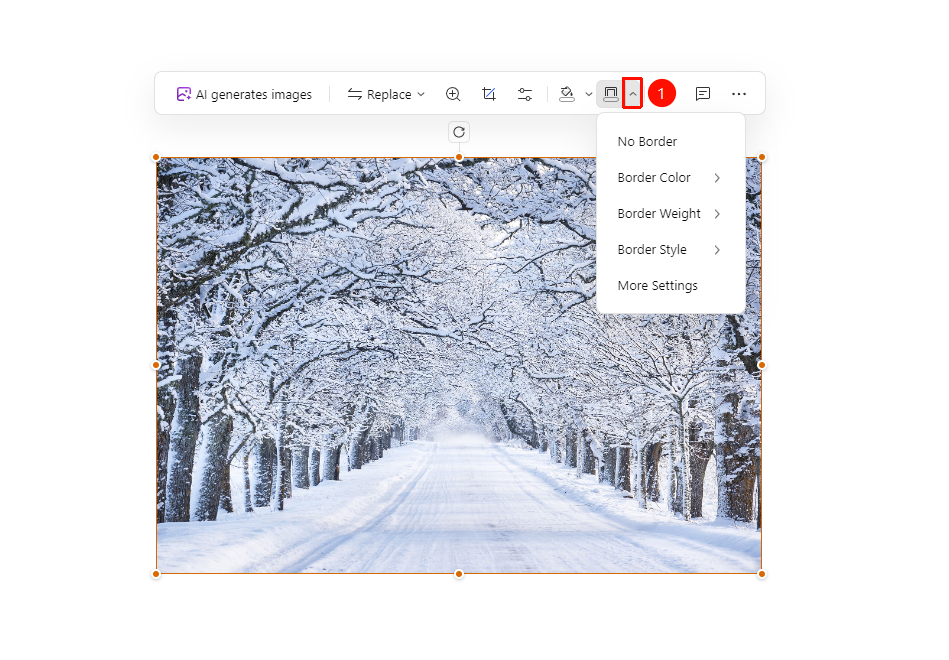

Set Outline via Floating Toolbar

Feature Entry
Object floating toolbar → "Outline" drop-down button

1. Select the object (text box, shape, picture, etc.) for which you want to set the outline to bring up the floating toolbar.

2. Find and click the "Outline" drop-down button.

3. Select a setting item from the pop-up menu:

   • No Outline: Hide the outline.
   • Outline Color: Select the outline line color.
   • Line Weight: Set the thickness of the outline line.
   • Line Type: Select a line style such as solid or dashed.
   • More Settings: Open the detailed outline settings panel.

FAQ

Question 1: How do I quickly remove an outline?

• Solution: Select the "No Outline" option to quickly hide the outline.

Question 2: How do I customize the outline color?

• Solution: Click the outline color and select "More Colors" to customize the color.

Question 3: How do I set a dashed outline?

• Solution: You can select different styles of dashed lines under line types.

Notes

• The outline style should coordinate with the overall design style.
• You can set the opacity of the outline to add depth.
• We recommend adjusting the line weight appropriately based on the size of the object.
