WPS Slides Toggle Button Feature User Guide

Feature Summary

The Toggle Button feature is used to insert a toggleable button control into a presentation. When clicked, the button switches between pressed and unpressed states.

Feature Description

Operation Steps

Insert a Toggle Button

Feature Entry
"Tools" tab → "Developer Tools" button → "Developer Tools" tab → "Toggle Button"

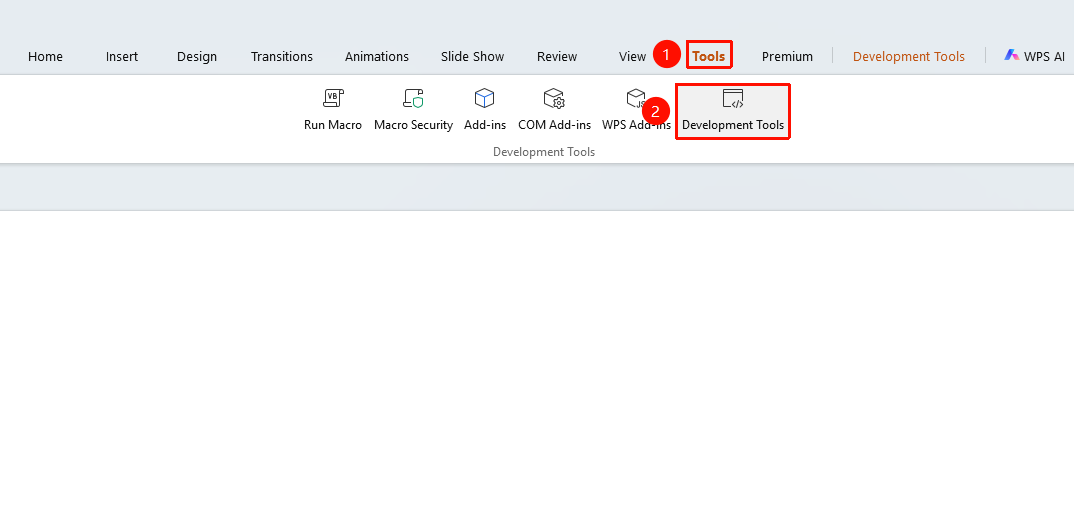

1. Click the "Tools" tab at the top, locate and click the "Developer Tools" button to bring up the "Developer Tools" tab at the top
2. Click the top "Developer Tools" tab

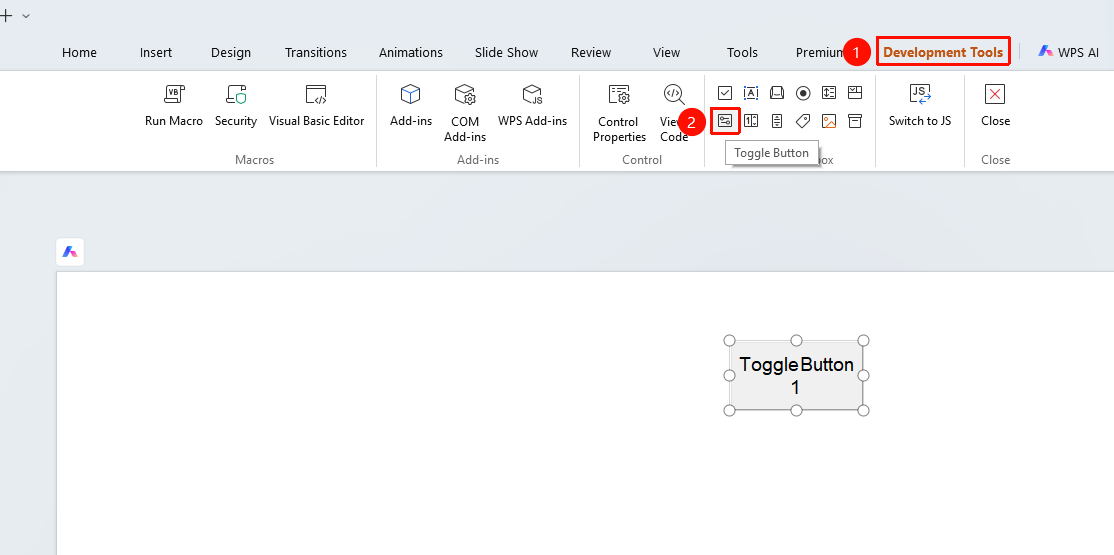

3. Select the "Toggle Button" control
4. Drag the mouse on the slide to draw the toggle button

Set Toggle Button Properties

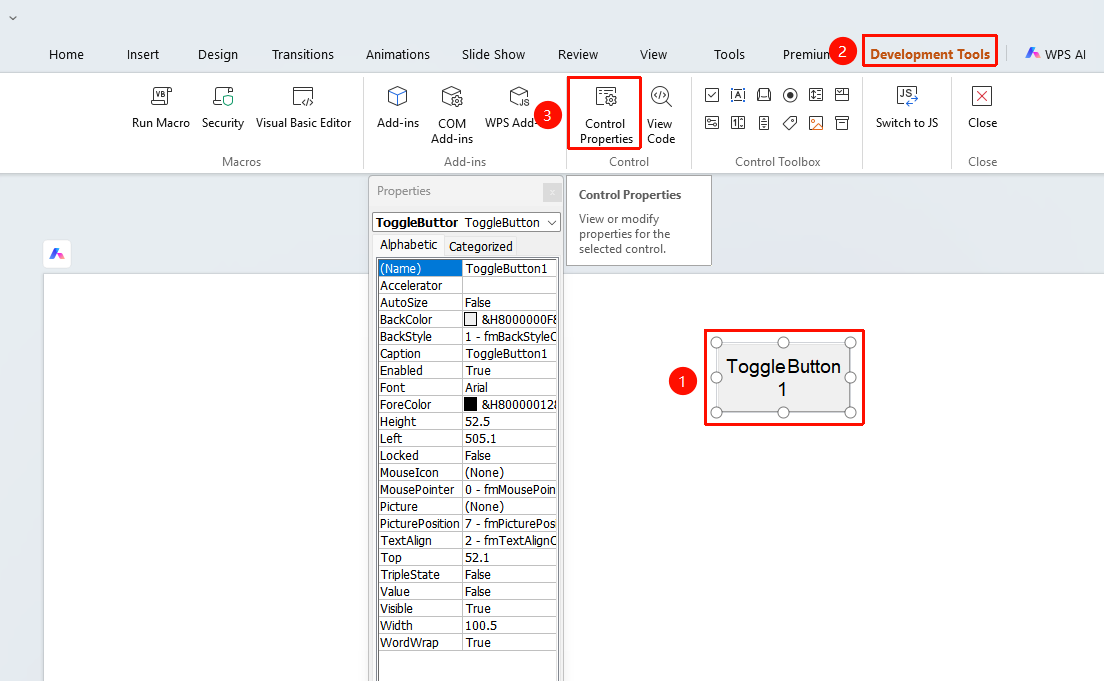

1. Select the inserted toggle button
2. Click the "Control Properties" button
3. Set the following options in the properties panel

• "Caption": Set the display text of the toggle button
• "Value": Get the button state (True = Pressed, False = Unpressed)
• "Name": Set the name of the toggle button

Frequently Asked Questions

Question 1: How to execute different operations based on the button state

• Solution: Determine the Value property in the Click event. True indicates the pressed state, and False indicates the unpressed state. Execute different code based on the different states.

Question 2: How to make the toggle button default to the pressed state

• Solution: Set the "Value" property to "True" in the control properties, and the button will default to the pressed state.

Notes

• The toggle button requires a VBA environment to function
• The button state is automatically maintained
