Feature Summary

The spin button feature is used to insert an adjustable numeric control in a presentation. Users can click the up and down arrows to increase or decrease the value, commonly used in numeric input scenarios.

Feature Description

Feature Dimension Description
Membership Restriction No membership restriction
Version Restriction No version restriction

Steps

Insert a Spin Button

Feature Entry
"Tools" tab → "Developer Tools" button → "Developer Tools" tab → "Spin Button"

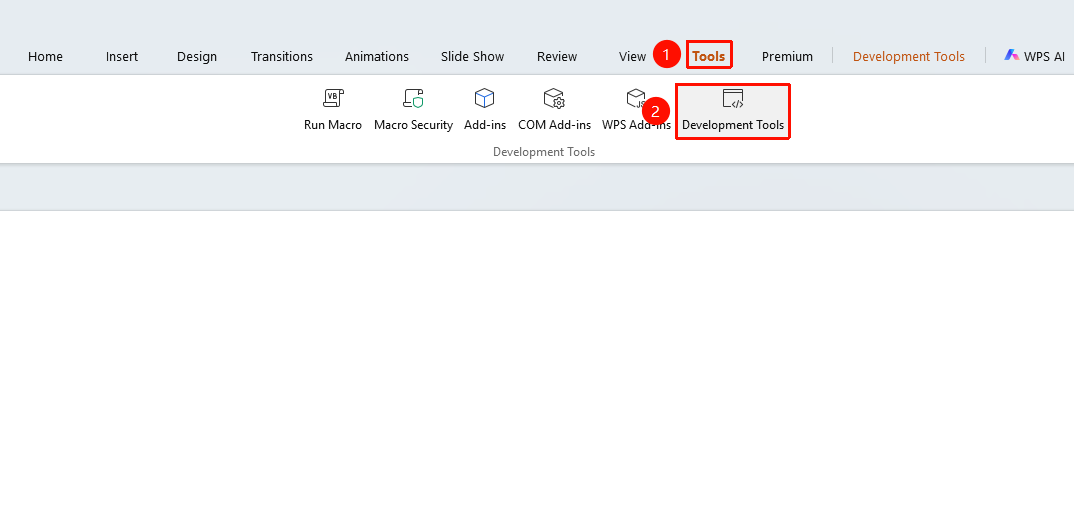

  1. Click the "Tools" tab at the top, locate and click the "Developer Tools" button to bring up the "Developer Tools" tab at the top

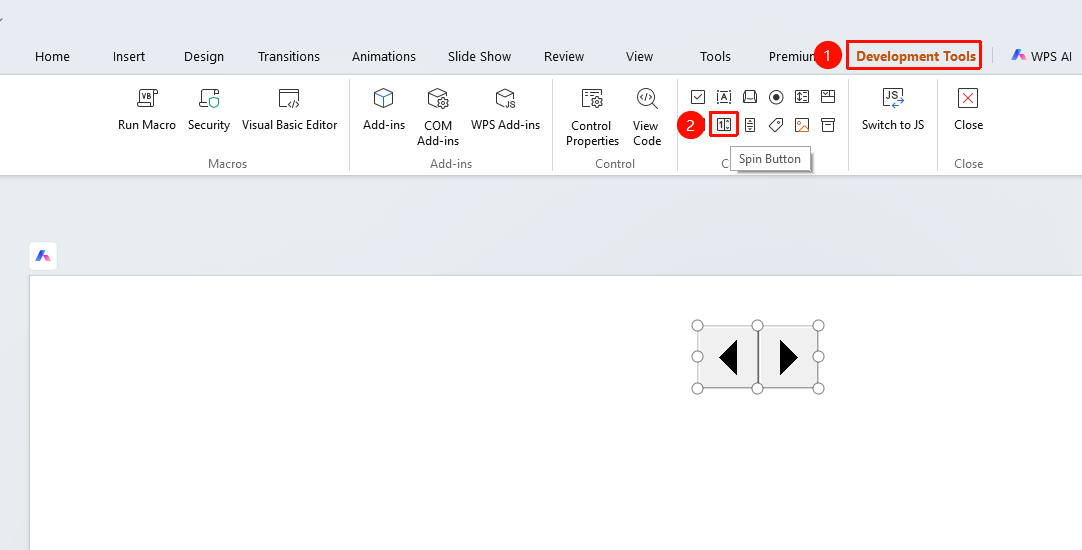

  2. Click the "Developer Tools" tab at the top
  3. Select the "Spin Button" control
  4. Drag the mouse on the slide to draw the spin button

截图
截图

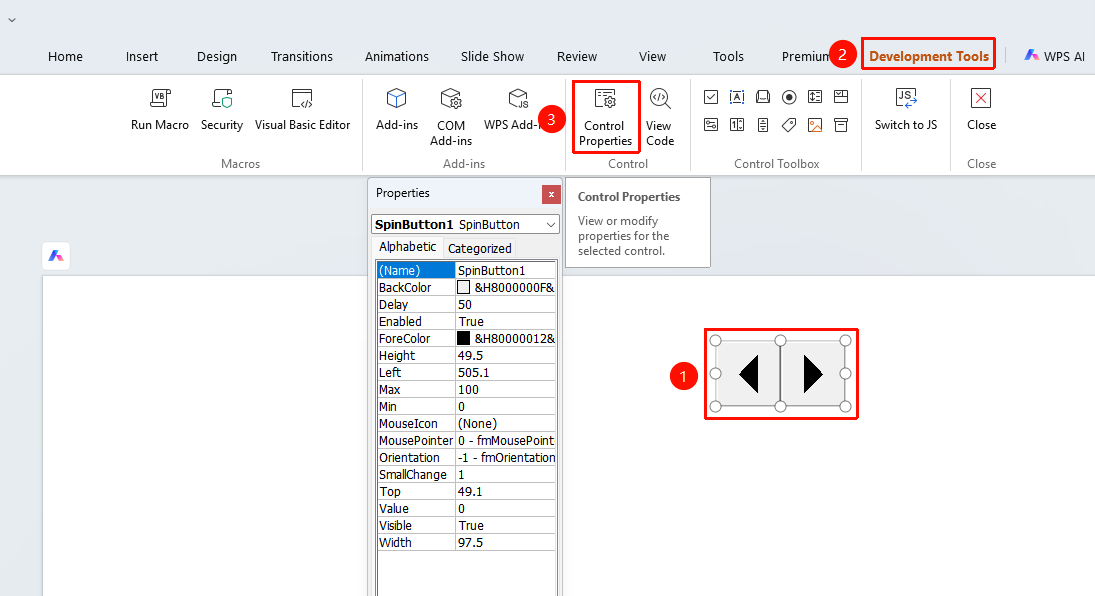

Common Spin Button Properties

  1. Select the inserted spin button
  2. Click the "Control Properties" button
  3. Set the following options in the properties panel
  • "Value": Set the current value
  • "Min": Set the minimum value
  • "Max": Set the maximum value
  • "SmallChange": Set the increment/decrement value per click
  • "Name": Set the control name

截图

FAQ

Q1: How to set the value range

  • Solution: In the control properties, set "Min" to the minimum value and "Max" to the maximum value. The user's adjustments will not exceed this range.

Q2: How to set the increment/decrement value per click

  • Solution: In the control properties, set the "SmallChange" property. For example, if set to 2, each click will increase or decrease the value by 2.
