Feature Summary

The Option Button feature is used to insert radio button controls into a presentation. Users can select one option from multiple choices, and it is commonly used to create forms with mutually exclusive selections.

Feature Description

Feature Dimension Description
Membership Restriction No membership restriction
Version Restriction No version restriction

Steps

Insert an Option Button

Feature Entry
"Tools" tab → "Developer Tools" button → "Developer" tab→ "Option Button"

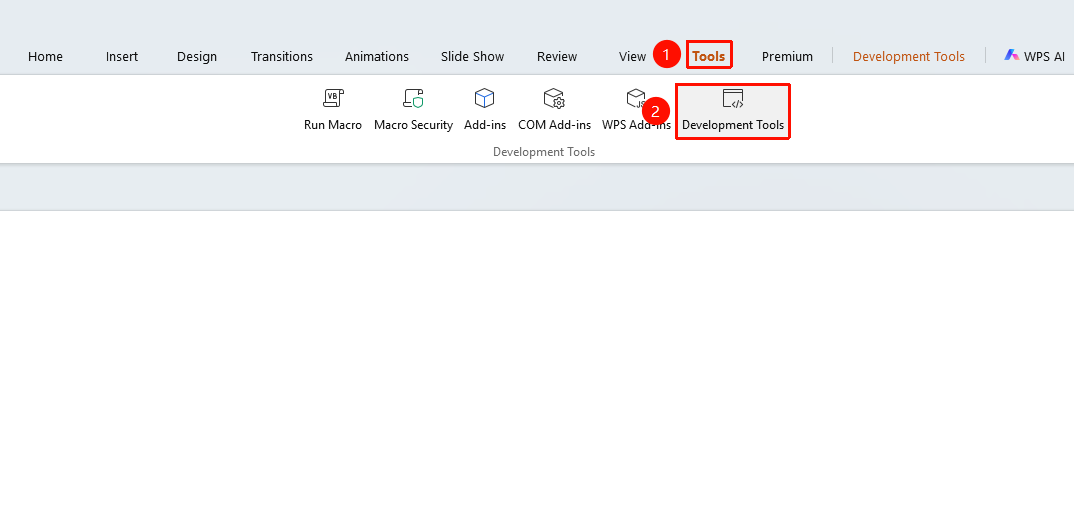

  1. Click the "Tools" tab at the top, locate and click the "Developer Tools" button to bring up the "Developer Tools" tab at the top
  2. Click the "Developer Tools" tab at the top

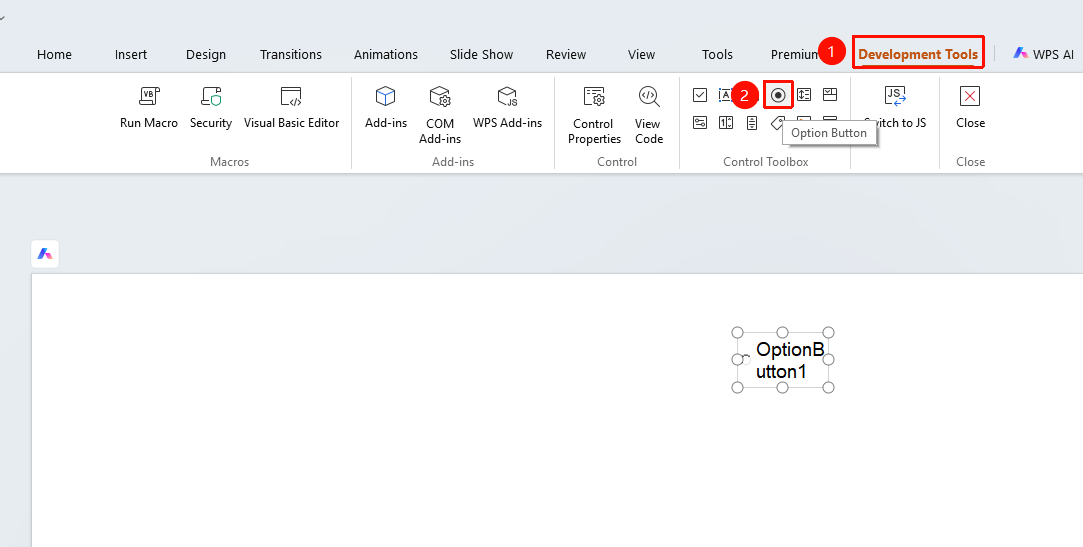

  3. Select the "Option Button" control
  4. Drag the mouse on the slide to draw the option button

截图
截图

Common Option Button Properties

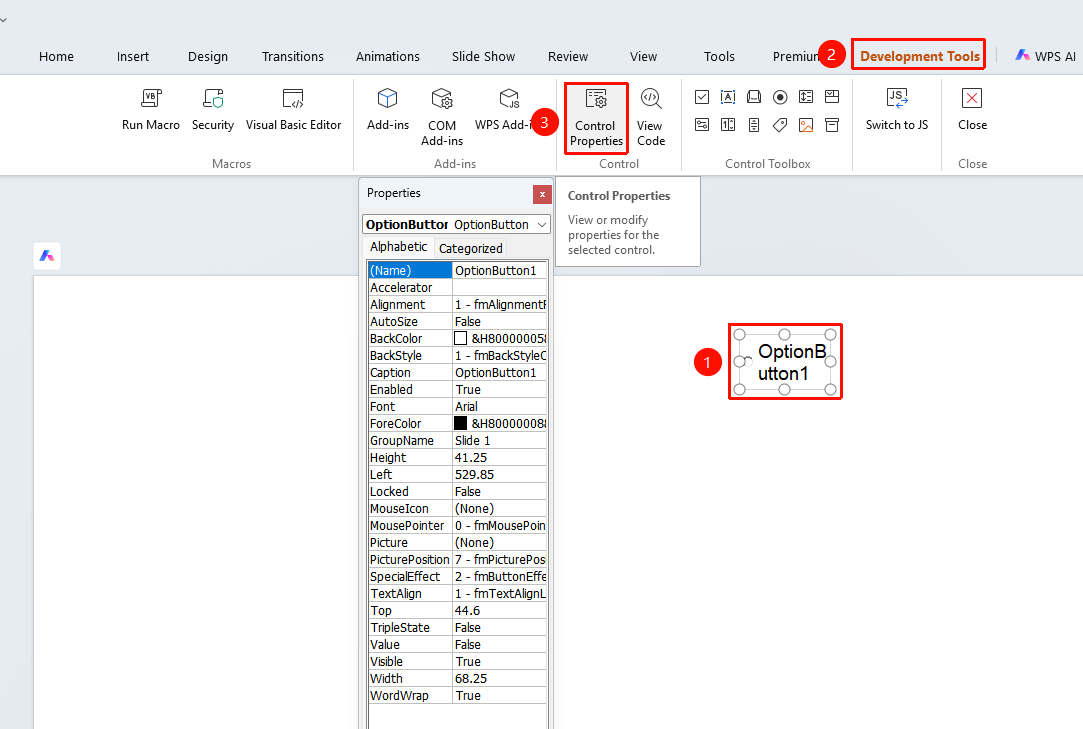

  1. Select the inserted option button
  2. Click the "Control Properties" button
  3. Set the following options in the properties panel
  • "Caption": Set the display text of the option button
  • "Value": Set the checked state of the option button (True/False)
  • "Name": Set the name of the option button

截图
