WPS Slides Icon Effect - Soft Edges Feature Guide

Summary

The Soft Edges feature is used to soften the edges of icons. You can adjust the size parameter of the soft edge to give the icon edges a blurred and soft visual effect.

Feature Description

Feature Dimension	Description
Membership Restriction	No membership restriction
Version Restriction	No version restriction

Steps

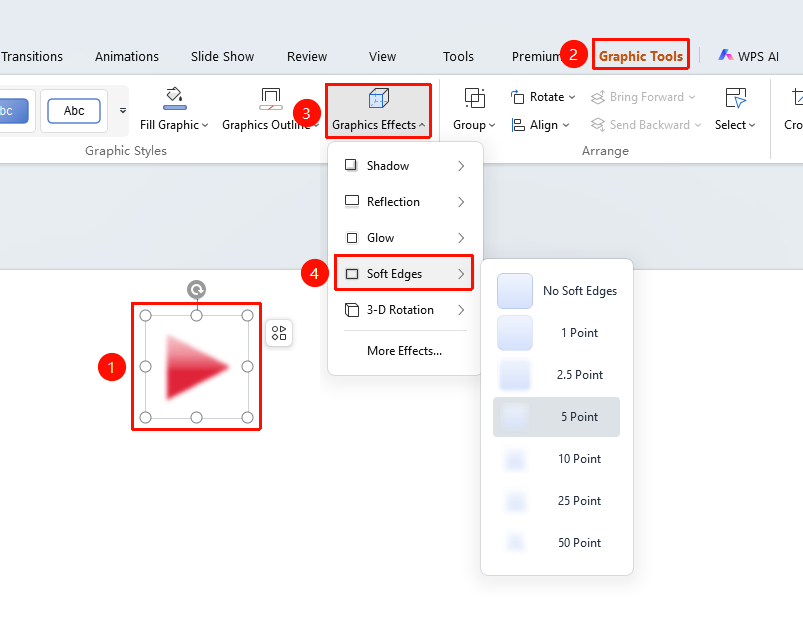

Apply Soft Edges Effect

Feature Entry
"Picture Tools" tab → "Effects" → "Soft Edges"

1. Select the icon you want to soften the edges of
2. Click the "Picture Tools" tab
3. Find and click the "Effects" button
4. Select "Soft Edges" to expand and choose a soft edges preset point size
5. Click "More Settings" to expand the effects settings panel

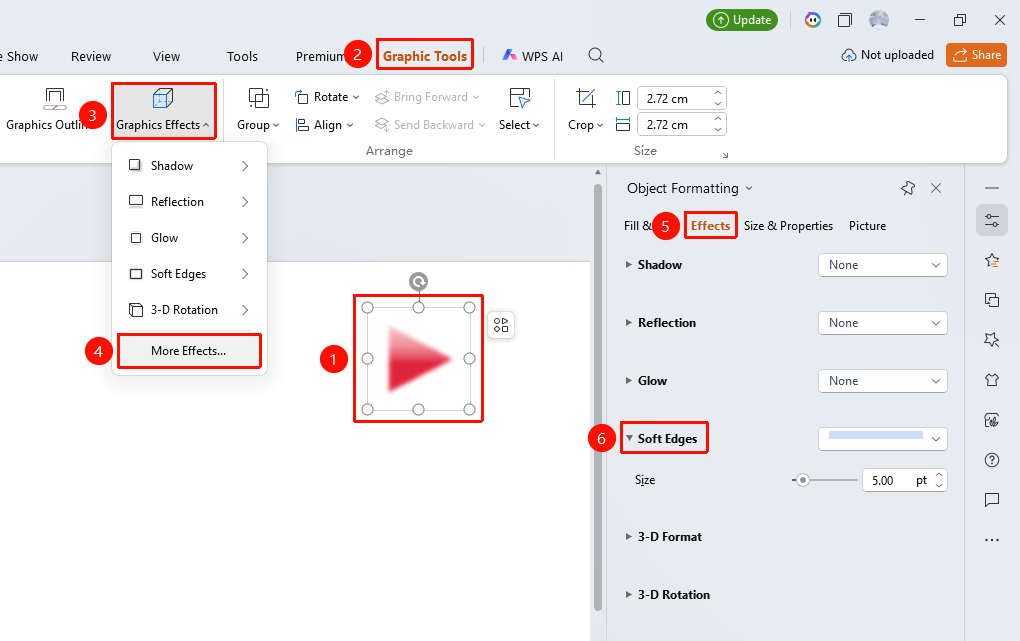

Customize Soft Edges

Feature Entry
"Picture Tools" tab → "Effects" → "More Settings" → "Object Properties" → "Soft Edges"

1. Select the icon you want to soften the edges of
2. Click the "Picture Tools" tab
3. Click the "Effects" button
4. Select "More Settings" to expand the right-side "Object Properties" sidebar
5. Configure the following parameters in the "Soft Edges" settings

• "Size": Set the soft edges size (0 pt to 100 pt)

6. Preview the effect in real time, click a blank area to apply

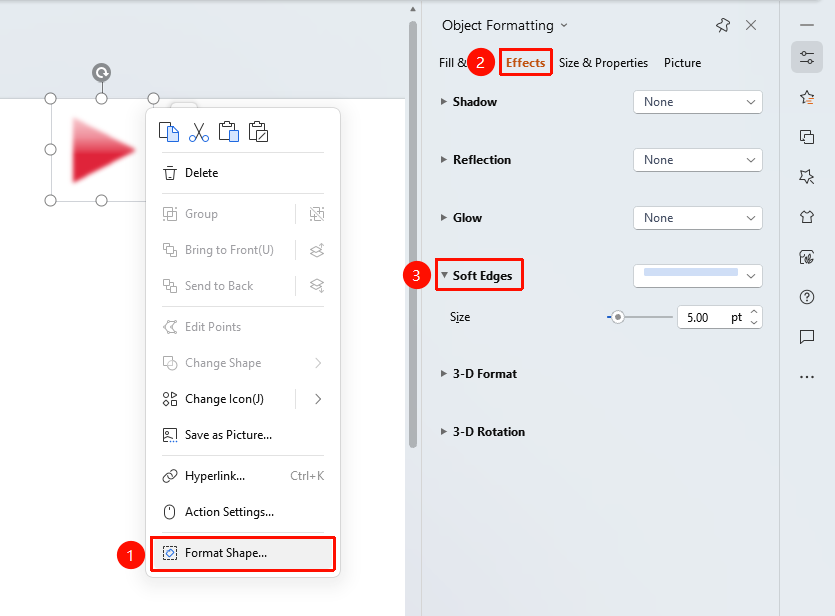

Right-Click Menu Settings

Feature Entry
Icon right-click menu → "Format Object"

1. Select the icon you want to soften the edges of
2. Right-click the icon
3. Select "Format Object"
4. Set the soft edges effect in the right-side "Object Properties" sidebar

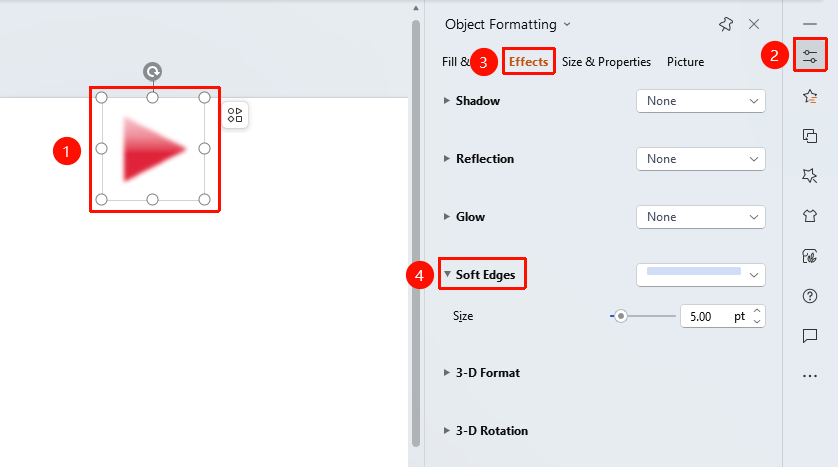

Side Task Pane Settings

Feature Entry
Side "Task Pane" → "Object Properties"

1. Select the icon you want to soften the edges of
2. Click the side "Object Properties" button
3. Set the soft edges effect in the "Object Properties" sidebar

FAQ

Q1: How to adjust the degree of soft edges

• Solution: In the soft edges settings, drag the size slider or enter a value. The larger the value, the blurrier the edges.

Q2: How to remove the soft edges effect

• Solution: Select "No Soft Edges" in the preset styles, or set the size to 0 in the object properties.

Q3: What is the difference between soft edges and shadow

• Solution: Soft edges blur the edges of the icon, while shadow adds a shadow below the icon.

Notes

• Soft edges give the icon edges a blurred and soft visual effect
• An excessively large soft edge may make the icon unclear
