Feature Summary

The icon solid fill feature is used to fill an icon with a single color. You can customize the color and transparency to give the icon a clean and clear visual effect.

Feature Description

Feature Dimension Description
Membership Restriction No membership restriction
Version Restriction No version restriction

Operation Steps

Apply Solid Fill

Feature Entry
"Shape Format" tab → "Fill"

  1. Select the icon you want to fill with color
  2. Click the top "Shape Format" tab
  3. Locate and click the "Fill" button to expand and set the following options
  • "Theme Colors": Click a preset color to quickly set a solid fill
  • "Standard Colors": Select a standard color
  • "More Fill Colors": Expand the standard/RGB palette to get more preset color options
  • "Recently Used Colors": Quickly select a recently used color
  • "Eyedropper": Use the eyedropper to pick a desired color from the screen
  1. Click the desired color to apply it to the icon
  2. Click "More Settings" to expand the icon fill panel

截图

Custom Solid Fill

Feature Entry
"Shape Format" tab → "Fill" → "More Settings" → "Format Shape" → "Fill"

  1. Select the icon you want to fill with color
  2. Click the "Shape Format" tab
  3. Click the "Fill" dropdown button to expand the dropdown menu
  4. In the dropdown menu, find and click "More Settings" to expand the "Format Shape" sidebar on the right
  5. Under the "Fill & Line" tab, click "Fill" to expand the fill list
  6. Select "Solid Fill" and set the following options
  • "Color": Select the fill color
  • "Transparency": Set the fill transparency (0%~100%)
  1. Preview the effect in real time, and click a blank area to apply

截图

"Home" Tab Settings

Feature Entry
"Home" tab → "Shape Fill"

  1. Select the icon you want to fill with color
  2. Click the top "Home" tab
  3. Locate and click the "Shape Fill" button
  4. Select a color from the dropdown menu to fill, click "More Settings" to go to the Object Properties sidebar

截图

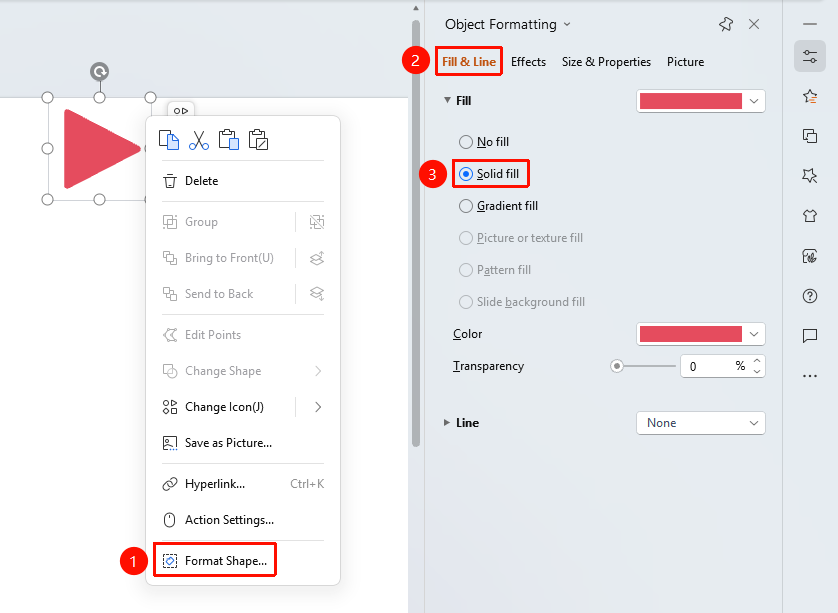

Right-Click Menu Settings

Feature Entry
Icon right-click menu → "Format Object"

  1. Select the icon you want to fill with color
  2. Right-click the icon
  3. Select "Format Object"
  4. Set the fill style in the "Format Shape" sidebar on the right

截图

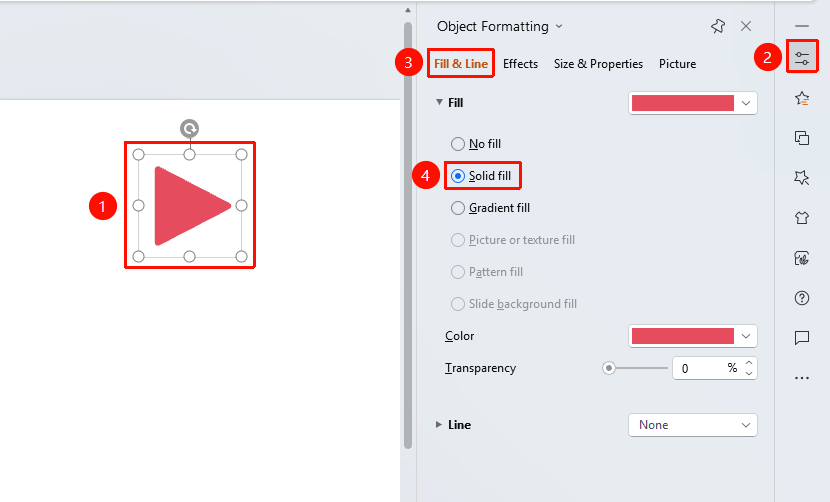

Side Task Pane Settings

Feature Entry
Side "Task Pane" → "Format Shape"

  1. Select the icon you want to fill with color
  2. Click the side "Format Shape" button
  3. Set the fill style in the "Format Shape" sidebar

截图

FAQ

Q1: How to adjust the transparency of the fill color

  • Solution: In the solid fill settings, drag the transparency slider or enter a percentage value to adjust the transparency.

Q2: How to restore the icon's default fill

  • Solution: Select "No Fill" in the fill options, or use Ctrl+Z to undo the operation.

Q3: How to select a custom color

  • Solution: Click "Other Colors" in the color picker, and you can enter RGB values or HSL values to select a custom color.

Notes

  • Solid fill will affect the overall appearance of the icon
  • You can achieve a semi-transparent effect by adjusting the transparency
