WPS Slides Shape Effects - Reflection Feature User Guide

Feature Summary

The reflection effect feature is used to add a reflection to a shape, giving it a mirror-like visual effect.

Feature Description

Feature Dimension	Description
Membership Restriction	No membership restriction
Version Restriction	No version restriction

Steps

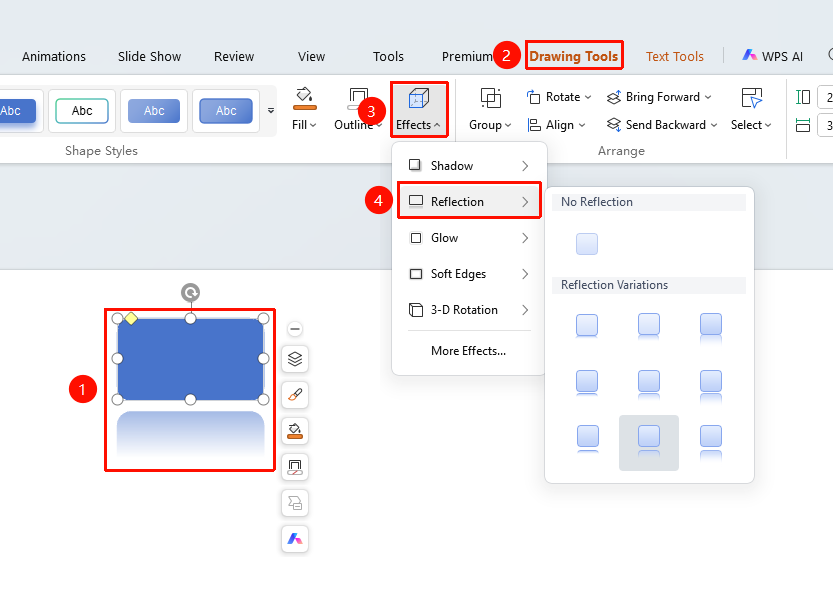

Applying Reflection Effect

Feature Entry
"Drawing Tools" tab → Shape Styles area → "Effects" → "Reflection"

1. Select the shape you want to add a reflection to
2. Click the top "Drawing Tools" tab
3. Find and click the "Effects" button
4. Select "Reflection" to expand and view reflection variants
5. Click the desired reflection variant style to apply it to the shape with one click
6. Click "More Settings" to expand the effects settings panel

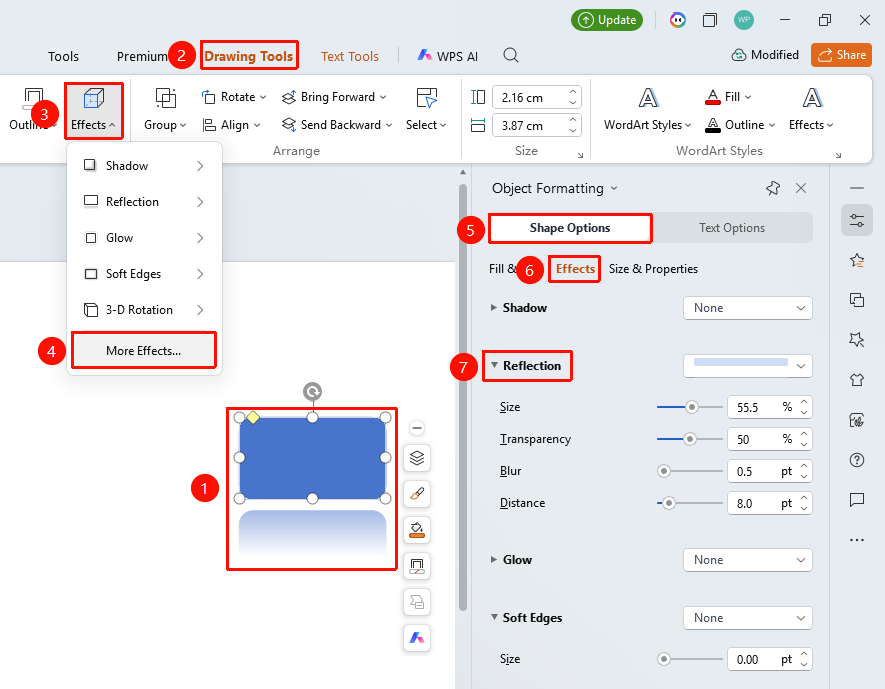

Customize Reflection

Feature Entry
"Drawing Tools" tab → Shape Styles area → "More Settings" → "Object Properties" → "Reflection"

1. Select the shape you want to add a reflection to
2. Click the "Drawing Tools" tab
3. Click the "Effects" button
4. Select "More Settings" to expand the right "Object Properties" sidebar
5. Configure the following parameters in the "Reflection" settings

• "Presets": Select a preset reflection style
• "Transparency": Set the reflection transparency (0%–100%)
• "Size": Set the reflection size (0%–100%)
• "Distance": Set the reflection distance (0 pt–100 pt)
• "Blur": Set the reflection blur level (0 pt–100 pt)

6. Preview the effect in real time, click a blank area to apply

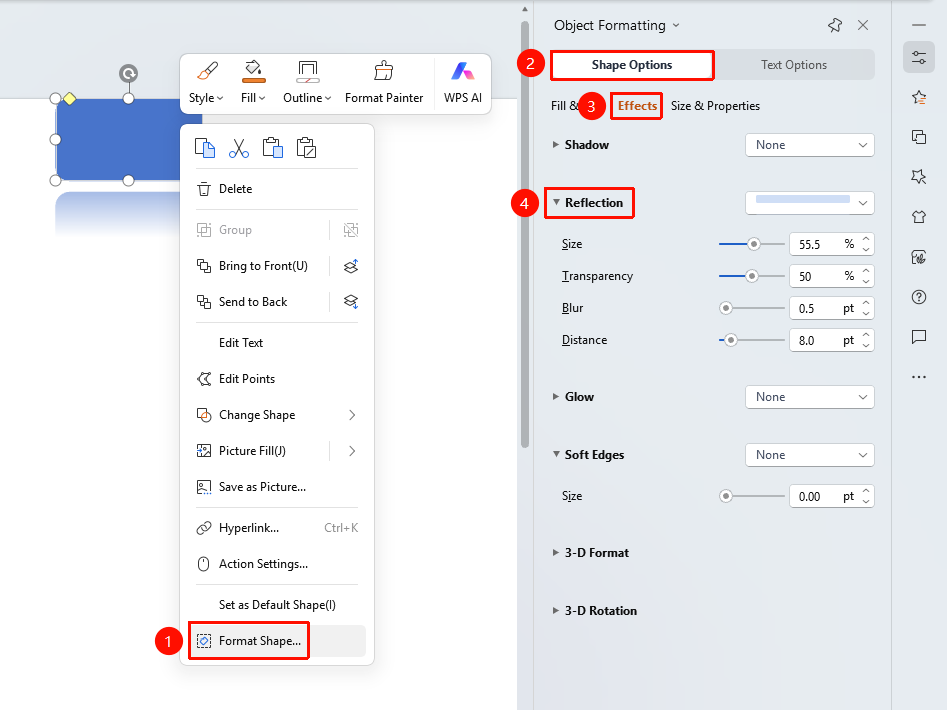

Right-Click Menu Settings

Feature Entry
Shape right-click menu → "Format Object"

1. Select the shape you want to add a reflection to
2. Right-click the shape
3. Select "Format Object"
4. Set the reflection effect in the right "Object Properties" sidebar

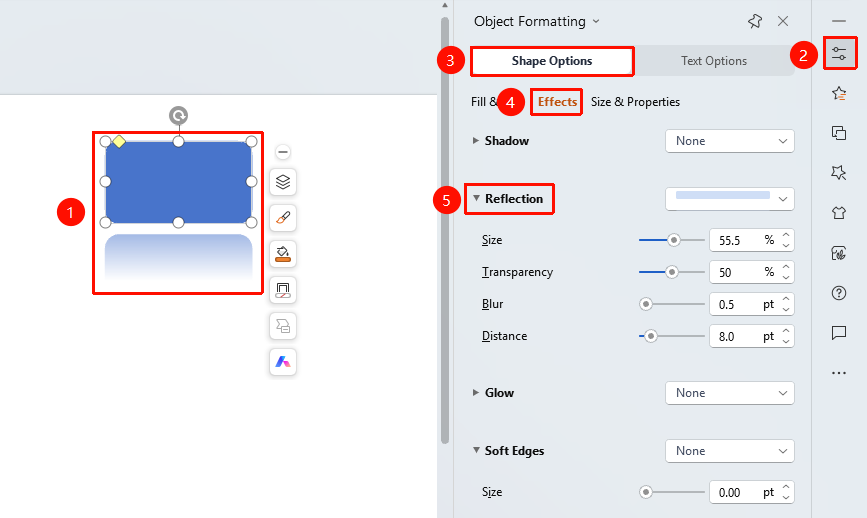

Side Task Pane Settings

Feature Entry
Side "Task Pane" → "Object Properties"

1. Select the shape you want to add a reflection to
2. Click the side "Object Properties" button
3. Set the reflection effect in the "Object Properties" sidebar

FAQ

Q1: How to adjust the size of the reflection

• Solution: In the reflection settings, drag the size slider or enter a value. The larger the value, the larger the reflection.

Q2: How to make the reflection more transparent

• Solution: In the reflection settings, drag the transparency slider. The larger the value, the more transparent the reflection.

Q3: How to remove the reflection effect

• Solution: Select "No Reflection" in the preset styles, or turn off reflection in the object properties.

Notes

• Reflection gives the shape a mirror-like visual effect
• The size and distance of the reflection will affect the visual effect
• You can control the clarity of the reflection by adjusting transparency and blur
