Summary

The glow effect feature is used to add a glow effect to shapes, giving them a glowing visual appearance.

Feature Description

Feature Dimension Description
Membership Restriction No membership restriction
Version Restriction No version restriction

Steps

Apply Glow Effect

Feature Entry
"Drawing Tools" tab → Shape Styles area → "Effects" → "Glow"

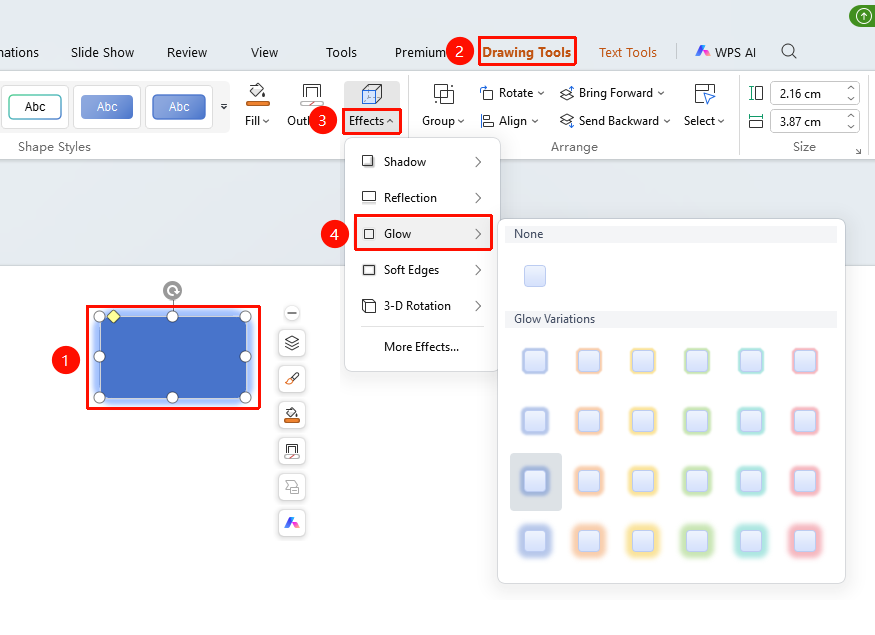

  1. Select the shape to which you want to add a glow
  2. Click the top "Drawing Tools" tab
  3. Find and click the "Effects" button
  4. Select "Glow" to view glow preset styles
  5. Click the desired glow style to apply it to the shape with one click
  6. Click "More Settings" to expand the effects settings panel

截图

Customize Glow Effect

Feature Entry
"Drawing Tools" tab → Shape Styles area → "Effects" → "More Settings" → "Format Shape" → "Glow"

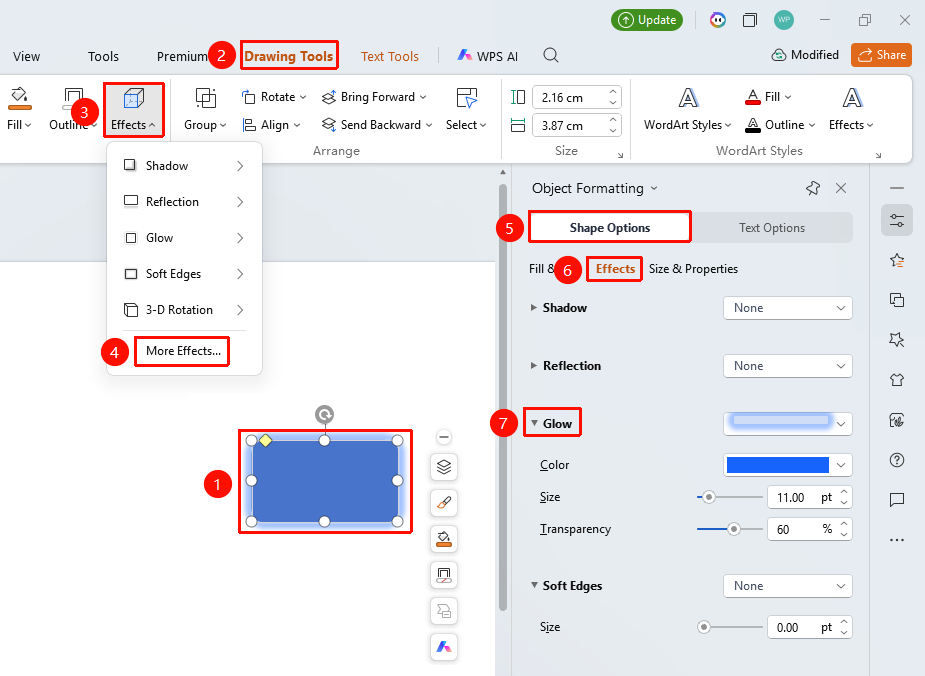

  1. Select the shape to which you want to add a glow
  2. Click the "Drawing Tools" tab
  3. Click the "Effects" button
  4. Select "More Settings" to expand the right-side "Format Shape" sidebar
  5. Configure the following parameters in the "Glow" settings
  • "Presets": Select a preset glow style
  • "Color": Set the glow color
  • "Size": Set the glow size (0 pt to 100 pt)
  • "Transparency": Set the glow transparency (0% to 100%)
  1. Preview the effect in real time, click a blank area to apply

截图

Right-Click Menu Settings

Feature Entry
Shape right-click menu → "Format Object"

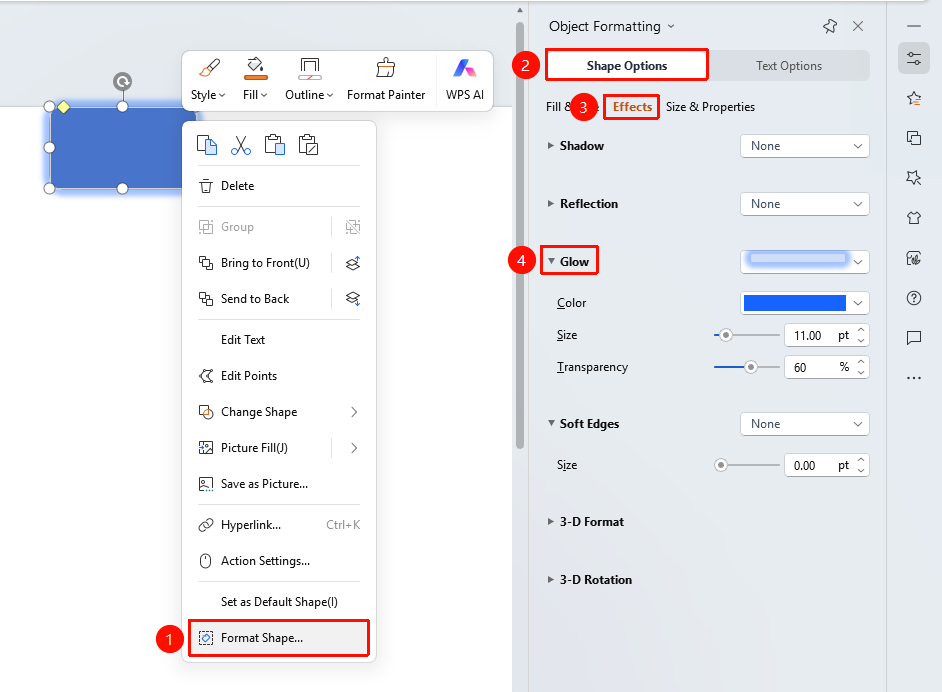

  1. Select the shape to which you want to add a glow
  2. Right-click the shape
  3. Select "Format Object"
  4. Set the glow effect in the right-side "Format Shape" sidebar

截图

Side Task Pane Settings

Feature Entry
Side "Task Pane" → "Object Properties"

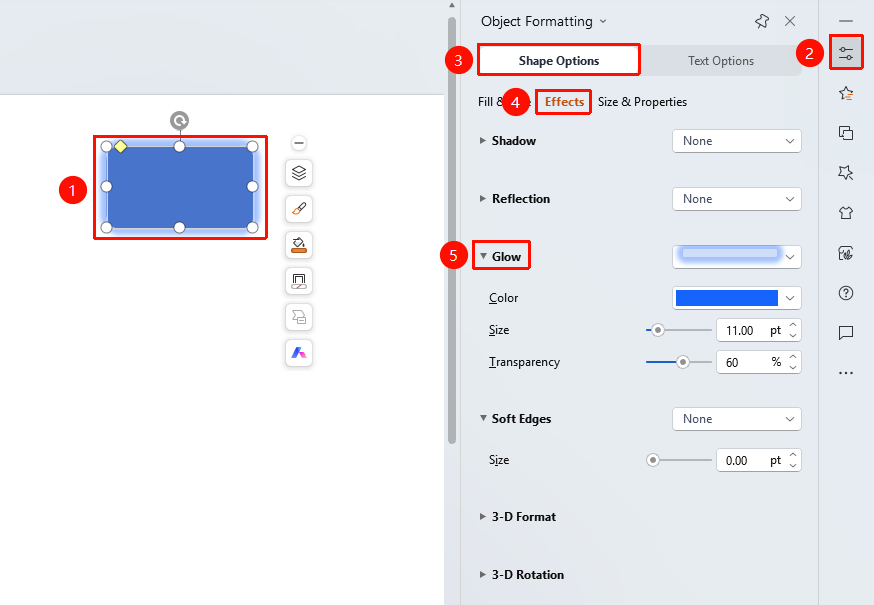

  1. Select the shape to which you want to add a glow
  2. Click the side "Object Properties" button
  3. Set the glow effect in the "Object Properties" sidebar

截图

FAQ

Q1: How to adjust the glow size

  • Solution: In the glow settings, drag the size slider or enter a value. The larger the value, the larger the glow range.

Q2: How to set the glow color

  • Solution: In the glow settings, click the color picker to select a glow color.

Q3: How to remove the glow effect

  • Solution: In the preset styles, select "No Glow", or turn off glow in the object properties.

Notes

  • The glow effect gives the shape a glowing visual appearance
  • The glow color affects the overall atmosphere of the shape
  • You can control the intensity of the glow by adjusting the transparency
